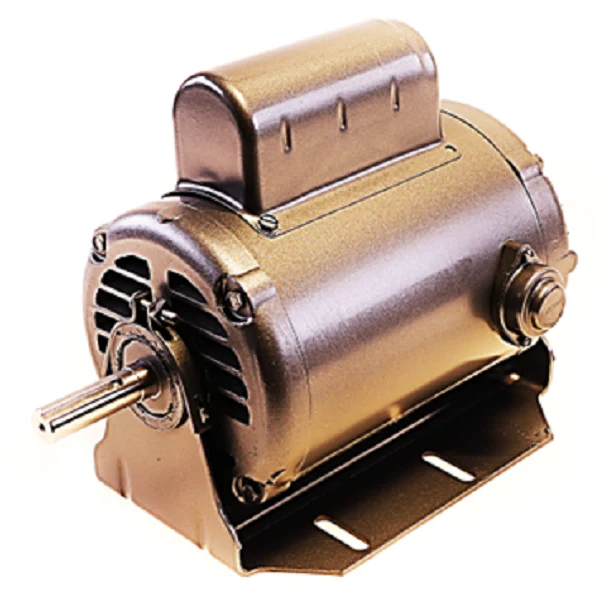

Baldor Motor RL1304A277 Motor
The Baldor RL1304A277 motor is a purpose-built 1/2 HP AC motor designed for demanding commercial and industrial HVACR operations. Operating on a 277V single-phase power supply, this 4-pole induction motor delivers a synchronous speed of 1800 RPM (1725 RPM at full load), making it an ideal choice for direct drive blower motors, fans, and air handling units in 277-volt lighting and power circuits. Engineered with a robust NEMA 56 frame and a resilient base mount, it specifically targets noise reduction and vibration dampening in sensitive mechanical environments. The Open Drip-Proof (ODP) enclosure ensures optimal cooling for continuous duty (CONT) cycles while the automatic thermal overload protection prevents winding failure during over-current events. Featuring ball bearings and a 1.25 service factor, this Baldor-Reliance motor provides the reliability field technicians expect for furnace motor replacement and general-purpose ventilation tasks.
Key Benefits:- Optimized Performance: Delivers consistent 1/2 HP output at 277V, drawing only 3.6 Amps for efficient high-voltage operation.
- Precision Balancing: Dynamically balanced rotors and a resilient cushion base significantly reduce audible noise and mechanical wear.
- Durable Construction: Heavy-gauge steel frame and double-shielded ball bearings support extended run times in industrial settings.
- Streamlined Installation: Standard NEMA 56 frame with a 5/8-inch shaft diameter allows for seamless integration into existing equipment.
- Internal Protection: Integrated thermal overload protection safeguards the copper windings from overheating.
Can this motor be used with a 115V or 230V power supply?
No, the Baldor RL1304A277 is specifically wound for 277V single-phase power and is not a multi-voltage unit.
Is this motor suitable for outdoor use?
This motor features an Open Drip-Proof (ODP) enclosure, meaning it should be used in environments where water or debris cannot enter the internals unless additional shielding is provided.
What is the rotation direction of this unit?
The RL1304A277 is traditionally reversible by following the wiring diagram on the terminal panel lead connections.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $526.86
-65%$526.86
$184.40Baldor Motor RL1304A277 Motor
The Baldor RL1304A277 motor is a purpose-built 1/2 HP AC motor designed for demanding commercial and industrial HVACR operations. Operating on a 277V single-phase power supply, this 4-pole induction motor delivers a synchronous speed of 1800 RPM (1725 RPM at full load), making it an ideal choice for direct drive blower motors, fans, and air handling units in 277-volt lighting and power circuits. Engineered with a robust NEMA 56 frame and a resilient base mount, it specifically targets noise reduction and vibration dampening in sensitive mechanical environments. The Open Drip-Proof (ODP) enclosure ensures optimal cooling for continuous duty (CONT) cycles while the automatic thermal overload protection prevents winding failure during over-current events. Featuring ball bearings and a 1.25 service factor, this Baldor-Reliance motor provides the reliability field technicians expect for furnace motor replacement and general-purpose ventilation tasks.
Key Benefits:- Optimized Performance: Delivers consistent 1/2 HP output at 277V, drawing only 3.6 Amps for efficient high-voltage operation.
- Precision Balancing: Dynamically balanced rotors and a resilient cushion base significantly reduce audible noise and mechanical wear.
- Durable Construction: Heavy-gauge steel frame and double-shielded ball bearings support extended run times in industrial settings.
- Streamlined Installation: Standard NEMA 56 frame with a 5/8-inch shaft diameter allows for seamless integration into existing equipment.
- Internal Protection: Integrated thermal overload protection safeguards the copper windings from overheating.
Can this motor be used with a 115V or 230V power supply?
No, the Baldor RL1304A277 is specifically wound for 277V single-phase power and is not a multi-voltage unit.
Is this motor suitable for outdoor use?
This motor features an Open Drip-Proof (ODP) enclosure, meaning it should be used in environments where water or debris cannot enter the internals unless additional shielding is provided.
What is the rotation direction of this unit?
The RL1304A277 is traditionally reversible by following the wiring diagram on the terminal panel lead connections.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
