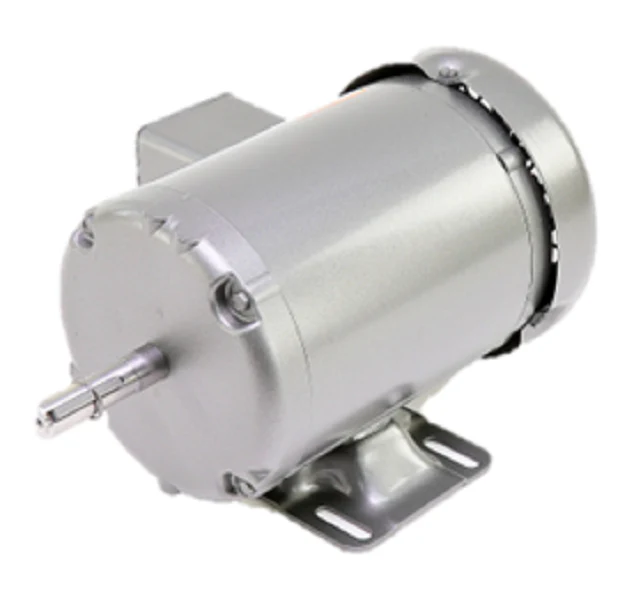

Baldor Motor M3542 Motor
The Baldor Motor M3542 is a high-performance 3/4HP general purpose AC motor engineered for demanding industrial and HVACR environments. Operating at a 1725 RPM base speed, this three-phase electric motor features a NEMA 56 frame with a rigid base for stable, vibration-resistant mounting. The TEFC (Totally Enclosed Fan Cooled) enclosure provides superior protection against dust and moisture, making it a reliable choice for pumps, compressors, and fans. With a 1.25 service factor and Class B insulation, the M3542 motor is built to handle continuous duty cycles (CONT) in ambient temperatures up to 40°C. Technical specifications include 208-230/460V compatibility and ball bearings designed for longevity in heavy-gauge steel frame applications. Whether you are performing a Baldor M3542 replacement or a new installation, this motor delivers consistent torque and efficiency across complex automated systems.
Key Benefits- Enhanced Durability: Constructed with a heavy-gauge steel frame and high-quality ball bearings to withstand harsh mechanical stress.
- Versatile Compatibility: Designed for standard NEMA 56 frame applications with a reversible shaft rotation for flexible installation.
- Optimized Cooling: The Totally Enclosed Fan Cooled (TEFC) design prevents internal contamination while maintaining safe operating temperatures.
- Reliable Performance: Features a 1.25 service factor, allowing the motor to handle intermittent overloads without compromising the 3/4 HP output.
Is the Baldor M3542 suitable for inverter use?
While the M3542 is a robust 3-phase industrial motor, it is classified as a general-purpose induction motor rather than a dedicated inverter-duty model. For variable frequency drive (VFD) applications, verify that the load requirements align with NEMA MG1 Part 31 standards.
What are the wiring options for this motor?
The Baldor Reliance M3542 supports multiple voltages, including 208V, 230V, and 460V. Technicians should refer to the nameplate connection diagram to ensure the 9-lead configuration is correctly set for high or low voltage operation.
Can this motor be mounted vertically?
Yes, the M3542 motor utilizes ball bearings and a rigid mounting base, which typically allows for versatile positioning; however, ensure that the fan shroud remains unobstructed for proper heat dissipation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $490.64
-65%$490.64
