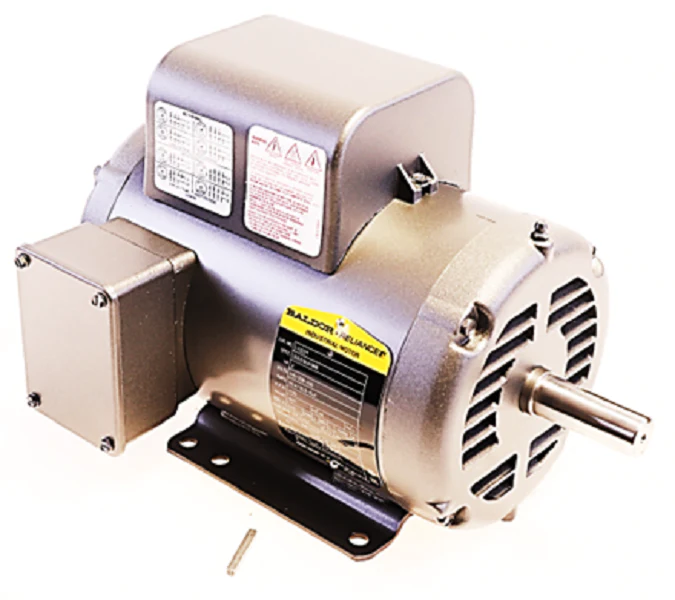

Baldor Motor L1322T Motor
The Baldor L1322T is a high-performance 2 HP single-phase motor designed for industrial and commercial HVACR applications requiring consistent torque and reliable performance. Operating at a 1725 RPM base speed, this 145T frame motor features a heavy-duty capacitor start, capacitor run design to maximize efficiency while reducing current draw during operation. Built with a rugged steel band frame and ball bearing construction, the Baldor-Reliance L1322T is engineered for floor mounting and is capable of handling demanding belt-driven or direct-drive loads. This motor is dual voltage rated for 115/208-230V at 60Hz, providing flexibility for various field wiring configurations. With a 1.15 service factor and NEMA Class B insulation, it maintains thermal stability under continuous duty cycles, making it a standard replacement for fans, pumps, and compressors where a NEMA 145T frame motor is required.
- High Starting Torque: Capacitor start/run design provides the necessary break-away torque for heavy-duty HVACR loads.
- Versatile Powering: 115/208-230V dual voltage capability ensures compatibility with most single-phase job site power.
- Industrial Durability: Robust ball bearings and a 1.15 service factor allow for reliable operation in rigorous environments.
- Standardized Fit: NEMA 145T frame dimensions facilitate easy mechanical integration into existing equipment mounts.
Common Questions
What are the wiring requirements for the L1322T at 230V?
This motor features a standard lead connection arrangement located inside the conduit box. For 230V operation, follow the high-voltage diagram on the nameplate to ensure proper capacitor sequencing and rotational direction.
Can the rotation direction of the Baldor L1322T be changed?
Yes, the rotation is electrically reversible. By swapping the specified internal leads according to the manufacturer's wiring diagram, you can configure the motor for either clockwise or counter-clockwise rotation.
Is this 2 HP motor suitable for air-over applications?
The L1322T is a TEFC (Totally Enclosed Fan Cooled) motor, meaning it uses an internal fan for cooling. It is suitable for most environments, though you should verify that airflow is not restricted in tight enclosures.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $909.51
-65%$909.51
$318.33Baldor Motor L1322T Motor
The Baldor L1322T is a high-performance 2 HP single-phase motor designed for industrial and commercial HVACR applications requiring consistent torque and reliable performance. Operating at a 1725 RPM base speed, this 145T frame motor features a heavy-duty capacitor start, capacitor run design to maximize efficiency while reducing current draw during operation. Built with a rugged steel band frame and ball bearing construction, the Baldor-Reliance L1322T is engineered for floor mounting and is capable of handling demanding belt-driven or direct-drive loads. This motor is dual voltage rated for 115/208-230V at 60Hz, providing flexibility for various field wiring configurations. With a 1.15 service factor and NEMA Class B insulation, it maintains thermal stability under continuous duty cycles, making it a standard replacement for fans, pumps, and compressors where a NEMA 145T frame motor is required.
- High Starting Torque: Capacitor start/run design provides the necessary break-away torque for heavy-duty HVACR loads.
- Versatile Powering: 115/208-230V dual voltage capability ensures compatibility with most single-phase job site power.
- Industrial Durability: Robust ball bearings and a 1.15 service factor allow for reliable operation in rigorous environments.
- Standardized Fit: NEMA 145T frame dimensions facilitate easy mechanical integration into existing equipment mounts.
Common Questions
What are the wiring requirements for the L1322T at 230V?
This motor features a standard lead connection arrangement located inside the conduit box. For 230V operation, follow the high-voltage diagram on the nameplate to ensure proper capacitor sequencing and rotational direction.
Can the rotation direction of the Baldor L1322T be changed?
Yes, the rotation is electrically reversible. By swapping the specified internal leads according to the manufacturer's wiring diagram, you can configure the motor for either clockwise or counter-clockwise rotation.
Is this 2 HP motor suitable for air-over applications?
The L1322T is a TEFC (Totally Enclosed Fan Cooled) motor, meaning it uses an internal fan for cooling. It is suitable for most environments, though you should verify that airflow is not restricted in tight enclosures.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
