Baldor Motor L1200 Motor

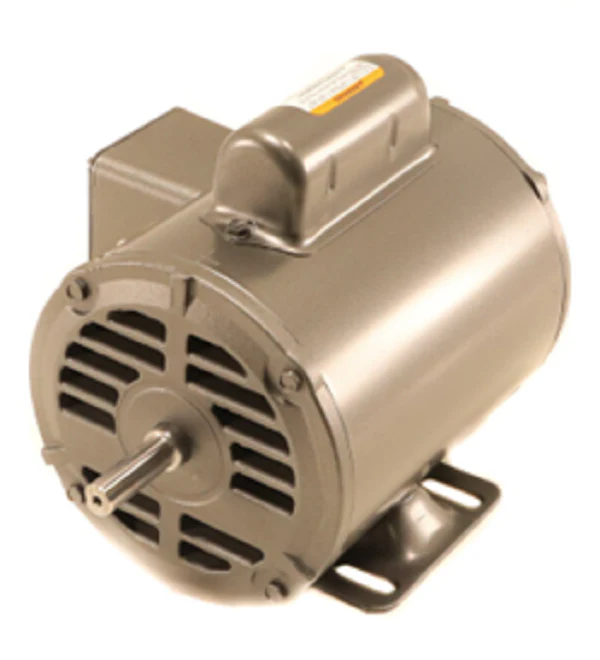

The Baldor-Reliance L1200 is an industrial-duty single-phase AC motor designed for continuous operation in commercial HVACR and pumping applications. Engineered with a NEMA 48 frame, this 0.17 HP fractional horsepower motor features an Open Drip Proof (ODP) enclosure, making it ideal for clean, indoor environments where maximum airflow is required to maintain optimal winding temperature. This 1725 RPM motor utilizes a capacitor-start induction-run design, providing the high starting torque necessary for belt-driven fans, blowers, and centrifugal pumps. The dual-voltage capability (115/208-230V) allows for field-wiring flexibility across 60Hz power supplies, while the resilient mounting base aids in vibration dampening to reduce acoustic noise in mechanical rooms.
Key Technical Benefits
- NEMA 48 Frame: Standardized dimensions ensure seamless drop-in replacement for existing fractional HP equipment.
- ODP Enclosure: Facilitates superior heat dissipation through internal ventilation, extending insulation life during high-duty cycles.
- 115/230V Versatility: Dual-voltage stator windings allow contractors to adapt to various site power requirements without stocking multiple SKUs.
- Heavy-Duty Ball Bearings: Optimized for radial loads, maintaining shaft alignment and reducing mechanical friction in HVAC blower assemblies.
Common Installation Questions
How do I verify the rotation for this motor?
The Baldor L1200 typically supports reversible rotation by swapping internal lead connections at the terminal board as indicated on the nameplate diagram.
Is this motor suitable for outdoor condensing units?
No, the Open Drip Proof (ODP) rating is intended for indoor applications. For exposed outdoor environments, a Totally Enclosed Fan Cooled (TEFC) motor is required.
What is the service factor for the L1200?
This motor features a 1.35 service factor, providing significant headroom to handle intermittent overloads above its rated 0.17 horsepower.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
