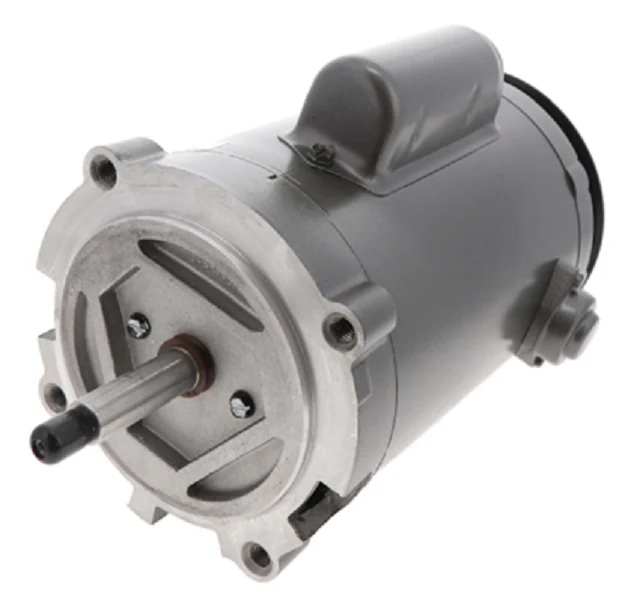

Baldor Motor JL1205A Motor
The Baldor JL1205A is a high-performance 1/3 HP general purpose motor engineered for industrial and commercial applications requiring a 3450 RPM synchronous speed. This single-phase AC motor features a NEMA 56J frame with a threaded shaft, making it a standard drop-in replacement for many jet pump motor configurations and fluid handling systems. Operating on a 115/230V dual voltage setup, the JL1205A utilizes an open drip-proof (ODP) enclosure, design for optimal airflow and cooling in clean, indoor environments. Built with high-grade ball bearings and a heavy-duty steel band, this motor ensures reliable torque delivery and long-term durability under continuous duty cycles. For HVACR contractors and facility managers, the Baldor-Reliance JL1205A offers the precision balancing and electrical efficiency needed to maintain system uptime in demanding pressure-boosting and circulation applications.
- Versatile Power: Dual-voltage 115/230V capability allows for integration into varied electrical infrastructures.
- Standardized Fit: The 56J frame with threaded shaft ensures compatibility with most centrifugal pump impellers.
- Cooling Efficiency: ODP design maximizes heat dissipation to maintain performance during peak load.
- Reliable Construction: Industrial ball bearings and NEMA-standard windings reduce vibration and wear.
Common Questions
Is the JL1205A suitable for outdoor use?
This motor features an ODP (Open Drip-Proof) enclosure, which is designed for indoor applications where moisture and debris are minimal. For outdoor or washdown environments, a TEFC-rated motor is typically recommended.
Can I use this motor to replace a different brand with a 56J frame?
Yes, as long as the horsepower, RPM, voltage, and shaft type align, this NEMA 56J frame motor is designed for cross-brand compatibility in pump applications.
Does this motor include a power cord or internal capacitor?
The JL1205A is a capacitor-start motor with an internal capacitor. It is designed for hardwired installation via the terminal box and does not include a pre-installed power cord.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $352.37
-65%$352.37
$123.33Baldor Motor JL1205A Motor
The Baldor JL1205A is a high-performance 1/3 HP general purpose motor engineered for industrial and commercial applications requiring a 3450 RPM synchronous speed. This single-phase AC motor features a NEMA 56J frame with a threaded shaft, making it a standard drop-in replacement for many jet pump motor configurations and fluid handling systems. Operating on a 115/230V dual voltage setup, the JL1205A utilizes an open drip-proof (ODP) enclosure, design for optimal airflow and cooling in clean, indoor environments. Built with high-grade ball bearings and a heavy-duty steel band, this motor ensures reliable torque delivery and long-term durability under continuous duty cycles. For HVACR contractors and facility managers, the Baldor-Reliance JL1205A offers the precision balancing and electrical efficiency needed to maintain system uptime in demanding pressure-boosting and circulation applications.
- Versatile Power: Dual-voltage 115/230V capability allows for integration into varied electrical infrastructures.
- Standardized Fit: The 56J frame with threaded shaft ensures compatibility with most centrifugal pump impellers.
- Cooling Efficiency: ODP design maximizes heat dissipation to maintain performance during peak load.
- Reliable Construction: Industrial ball bearings and NEMA-standard windings reduce vibration and wear.
Common Questions
Is the JL1205A suitable for outdoor use?
This motor features an ODP (Open Drip-Proof) enclosure, which is designed for indoor applications where moisture and debris are minimal. For outdoor or washdown environments, a TEFC-rated motor is typically recommended.
Can I use this motor to replace a different brand with a 56J frame?
Yes, as long as the horsepower, RPM, voltage, and shaft type align, this NEMA 56J frame motor is designed for cross-brand compatibility in pump applications.
Does this motor include a power cord or internal capacitor?
The JL1205A is a capacitor-start motor with an internal capacitor. It is designed for hardwired installation via the terminal box and does not include a pre-installed power cord.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
