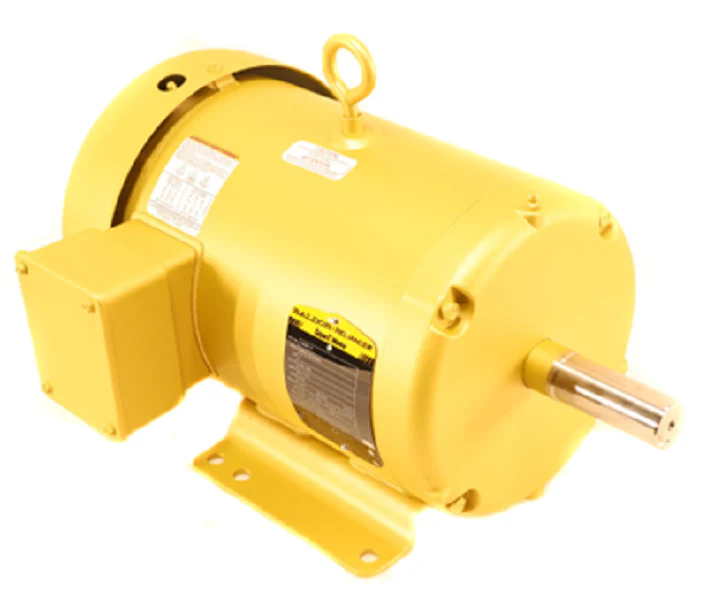

Baldor Motor EM3611T Motor
The Baldor-Reliance EM3611T is a heavy-duty NEMA Premium Efficient motor engineered for rigorous industrial applications. Built on a 182T frame, this 3 HP three-phase motor operates at a nominal 1800 RPM (base speed 1760 RPM) and is designed for 230/460V at 60Hz. Featuring TEFC (Totally Enclosed Fan Cooled) construction and an IP54 rating, it provides superior protection against dust and moisture in demanding HVACR environments. The cast iron conduit box and heavy-gauge steel band ensure structural integrity under high torque loads. Utilizing Class F insulation and a 1.15 service factor, the EM3611T maintains thermal stability during continuous operation. This general purpose AC motor is ideal for driving pumps, compressors, and fans where energy efficiency and long-term reliability are non-negotiable for contractors and facility managers.
This item must be shipped via trucking. Please contact us for a freight quote.
Key Technical Benefits
- High Efficiency: Meets EISA 2010 mandates for NEMA Premium efficiency, reducing operational overhead and heat dissipation.
- Precision Engineering: Balanced rotor reduces vibration, extending the life of 6206 ball bearings and connected equipment.
- Versatile Mounting: Standard 182T frame dimensions allow for seamless drop-in replacement in most industrial configurations.
- Inverter Rated: Capable of handling 20:1 variable torque and 10:1 constant torque ranges when utilized with a VFD.
Common Questions
What are the wiring requirements for the EM3611T?
This motor utilizes a standard 9-lead configuration suitable for 230V or 460V dual-voltage industrial power supplies.
Is this motor suitable for outdoor HVAC installations?
Yes, the TEFC enclosure and premium sealing make it suitable for damp or dusty environments typical in outdoor mechanical rooms.
Can I use this motor with a Variable Frequency Drive (VFD)?
Yes, the Baldor EM3611T features an ISR (Inverter Spike Resistant) copper winding system designed to withstand voltage spikes associated with VFD operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
