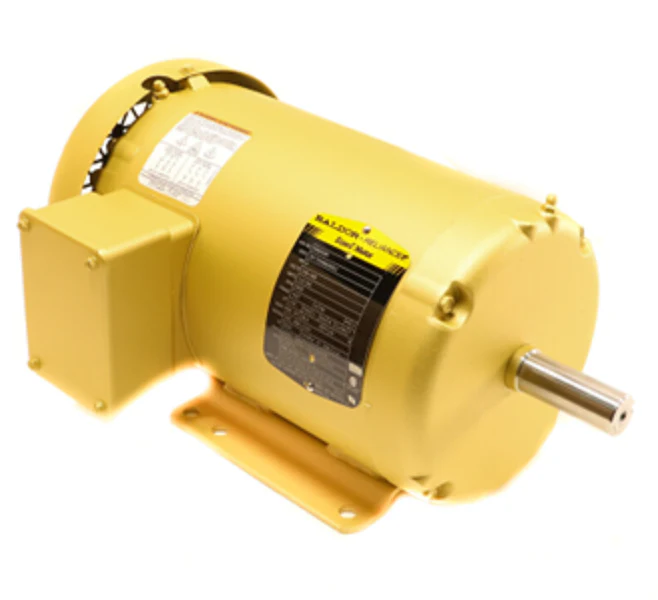

Baldor Motor EM3559T Motor
The Baldor-Reliance EM3559T is a high-performance 3 HP NEMA Premium Efficient motor designed for demanding industrial and HVACR applications. Operating at 3450 RPM, this three-phase alternating current motor is engineered for 208-230/460V service at 60Hz. It features a 145T frame with a footside mounting configuration and Class F insulation to withstand high ambient temperatures during continuous operation. The TEFC (Totally Enclosed Fan Cooled) enclosure provides superior protection against dust and moisture, making it a reliable choice for driving centrifugal pumps, fans, and compressors. With a service factor of 1.15 and precision-balanced rotors, the EM3559T ensures low vibration and maximum torque delivery. Contractors selecting this motor can expect high electrical efficiency ratings that meet strict energy regulations while reducing total operational costs in heavy-duty commercial environments.
Key Benefits
- NEMA Premium Efficiency: Optimizes power consumption and reduces heat generation across the windings.
- Versatile Voltage Rating: The 208-230/460V motor design allows for flexible integration into various three-phase power systems.
- Durable TEFC Construction: Protects internal components from contaminants in harsh mechanical room environments.
- Precision Shaft Alignment: The 145T frame ensures seamless compatibility with standard drive couplings and pulleys.
- Thermal Resiliance: Built with Class F insulation to maintain structural integrity under high-load cycling.
Common Questions
What are the wiring requirements for 230V vs 460V operation?
This motor utilizes a standard 9-lead configuration. For 208-230V, leads are wired in a low-voltage parallel connection, while 460V requires a high-voltage series connection as specified on the nameplate diagram.
Is the EM3559T compatible with Variable Frequency Drives (VFDs)?
Yes, this industrial AC motor is rated for inverter use, provided the VFD is programmed within the motor’s base frequency and voltage parameters to prevent winding stress.
What is the frame size and mounting type for this 3HP motor?
The unit features a 145T NEMA frame with a rigid base (foot mounting), ensuring a standardized footprint for easy replacement of existing 3450 RPM motors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
