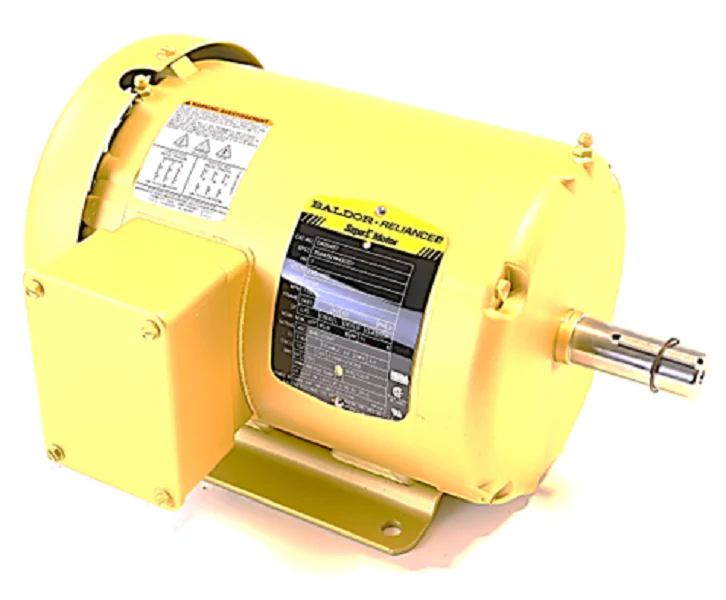

Baldor Motor EM3546T Motor
The Baldor-Reliance EM3546T is a heavy-duty NEMA Premium industrial motor engineered for continuous duty in demanding HVACR and pumping applications. This 1 HP three-phase motor operates at a base speed of 1760 RPM and is housed in a rugged 143T frame with a TEFC (Totally Enclosed Fan Cooled) enclosure, providing superior protection against contaminants. Designed for versatility, the dual-voltage 230/460V configuration utilizes a Super-E premium efficiency design to minimize energy consumption and reduce heat generation during operation. Built with high-grade Class F insulation and a 1.15 service factor, this motor handles load fluctuations reliably. Technical specifications include a ball bearing system for radial loads, a cold-rolled steel frame, and balanced rotors to minimize vibration. Whether you are replacing a general-purpose motor or integrating it into a new VFD-ready system, the EM3546T delivers the torque and thermal headroom required for industrial reliability.
Key Benefits- Super-E Efficiency: Meets NEMA Premium standards to lower operational costs and improve thermal management.
- Industrial Grade Construction: Features a durable 143T frame with TEFC rating for protection in harsh environments.
- Versatile Power: Supports 230/460V 3-phase input, making it compatible with most standard industrial power grids.
- Reliable Performance: Rated for a 1.15 service factor, allowing for occasional overloads without compromising the windings.
- VFD Compatibility: Designed to handle the demands of variable frequency drives in modern air handling systems.
Is the EM3546T suitable for inverter use?
Yes, as a Super-E motor, it is designed to meet NEMA MG1 Part 31.4.4.2 specifications for voltage spikes and is suitable for use with variable frequency drives.
Can this motor be mounted in any orientation?
The EM3546T is designed for standard horizontal mounting; however, the ball bearing construction allows for significant flexibility depending on the specific shaft load requirements.
What are the wiring requirements for 230V vs 460V?
This motor features a standard 9-lead configuration. Always refer to the nameplate diagram to ensure the proper series or parallel bridge connections for your site voltage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
