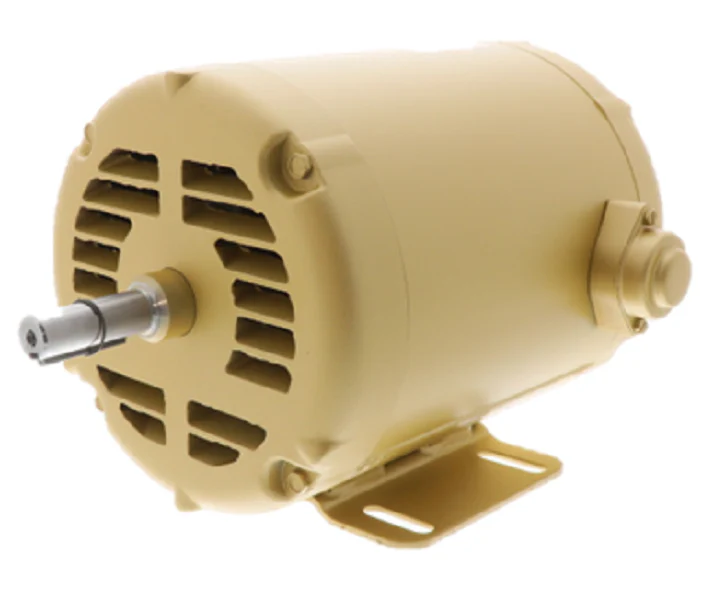

Baldor Motor EM31116A Motor
The Baldor-Reliance EM31116A is a high-performance 1 HP general purpose motor designed for industrial HVACR applications requiring reliable torque and continuous duty operation. Built on a NEMA 143T frame, this three-phase induction motor operates at a 1760 RPM base speed, making it an ideal choice for driving pumps, fans, and compressors. Engineered with a premium efficient design, it supports dual-voltage 230/460V 3-phase configurations at 60Hz, drawing 3.1/1.55 amps at full load. The TEFC (Totally Enclosed Fan Cooled) enclosure ensures protection against contaminants, while the ball bearing construction supports both horizontal and versatile mounting positions. Technicians will appreciate the Class F insulation and a 1.15 service factor, providing the thermal headroom necessary for demanding environments. This industrial AC motor is specifically optimized for longevity in commercial air handling units and fluid circulation systems where precise speed regulation and energy efficiency are critical for operational uptime.
Key Benefits
- NEMA Premium Efficiency: Optimized winding design reduces energy consumption and operational heat.
- TEFC Enclosure: Durable cast iron or heavy-gauge steel construction protects internal components from dust and moisture.
- Versatile Power: Dual-voltage 230V/460V capability allows for flexible integration into existing electrical infrastructures.
- Standard 143T Frame: Ensures straightforward drop-in replacement for existing NEMA 140 series motor mounts.
Common Questions
What is the frame size and shaft diameter for the EM31116A?
This motor utilizes a standard 143T frame with a 7/8-inch shaft diameter, ensuring compatibility with standard pulleys and couplings.
Can this motor be used with a Variable Frequency Drive (VFD)?
Yes, the EM31116A features an inverter-ready insulation system suitable for 20:1 variable torque and 10:1 constant torque speed ranges.
Is this motor suitable for outdoor installation?
While the TEFC rating provides excellent protection, we recommend additional weather shielding if the unit is exposed to direct heavy precipitation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
