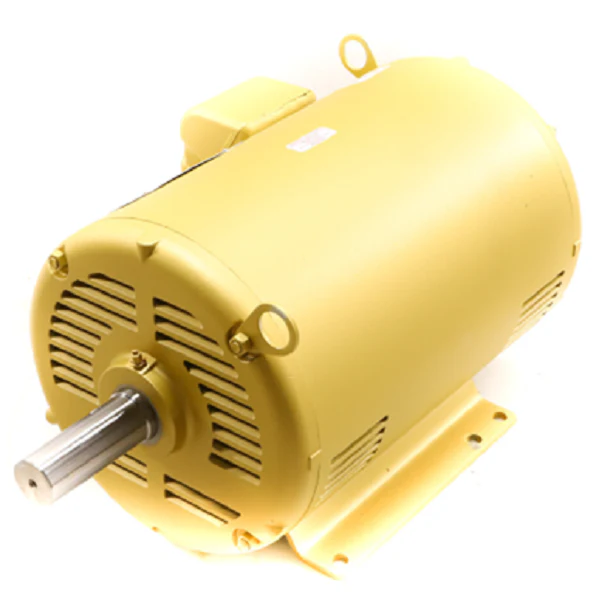

Baldor Motor EM2515T Motor
The Baldor EM2515T Motor is a high-performance 20hp 1800rpm 230/460v industrial power solution engineered for demanding HVACR and general-purpose applications. Built on a robust 256T Frame with an ODP (Open Drip Proof) enclosure, this three-phase induction motor is designed to maintain optimal operating temperatures while providing superior NEMA Premium efficiency for reduced energy consumption. As a Super-E motor, it features an advanced insulation system that is inverter ready per NEMA MG1 Part 31.4.4.2 standards, making it an ideal choice for varying load requirements in pumps, fans, and compressors.
This 20 HP electric motor delivers a service factor of 1.15 and is constructed with a heavy-duty steel frame and ball bearings to withstand continuous duty cycles. The 1800 RPM base speed (1765 RPM full load) provides consistent torque for industrial machinery, while the 460V 3-phase and 230V dual-voltage capability ensures seamless integration into existing 60Hz power systems. Designed for longevity and reliability, the EM2515T utilizes an optimized airflow design to provide high horsepower in a compact footprint, essential for rigid base mounting in tight mechanical rooms.
Key Benefits:- NEMA Premium Efficient: Engineered to lower utility costs and improve system sustainability under continuous load.
- Inverter Ready Operation: Compatible with Variable Frequency Drives (VFDs) for precise control and soft-starting.
- Durable Construction: Features ball bearings and a rigid base mount to ensure stability in high-vibration environments.
- Reversible Rotation: Offers flexibility for different mechanical drive configurations and field installations.
- Superior Thermal Management: The ODP enclosure allows for maximum cooling, extending the life of the internal windings.
- Is this motor suitable for outdoor use? Because this is an Open Drip Proof (ODP) motor, it should be used in environments where it is protected from direct weather and falling debris; for washdown or outdoor exposure, a TEFC enclosure is typically preferred.
- What is the shaft diameter for the 256T frame? The standard 256T frame motor features a 1.625-inch (1-5/8") shaft diameter.
- Can this 20 HP motor be converted to F2 mounting? Yes, the Baldor EM2515T is typically suitable for F1 to F2 conduit box conversion to accommodate different installation footprints.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,647.14
-65%$2,647.14
$926.50Baldor Motor EM2515T Motor
The Baldor EM2515T Motor is a high-performance 20hp 1800rpm 230/460v industrial power solution engineered for demanding HVACR and general-purpose applications. Built on a robust 256T Frame with an ODP (Open Drip Proof) enclosure, this three-phase induction motor is designed to maintain optimal operating temperatures while providing superior NEMA Premium efficiency for reduced energy consumption. As a Super-E motor, it features an advanced insulation system that is inverter ready per NEMA MG1 Part 31.4.4.2 standards, making it an ideal choice for varying load requirements in pumps, fans, and compressors.
This 20 HP electric motor delivers a service factor of 1.15 and is constructed with a heavy-duty steel frame and ball bearings to withstand continuous duty cycles. The 1800 RPM base speed (1765 RPM full load) provides consistent torque for industrial machinery, while the 460V 3-phase and 230V dual-voltage capability ensures seamless integration into existing 60Hz power systems. Designed for longevity and reliability, the EM2515T utilizes an optimized airflow design to provide high horsepower in a compact footprint, essential for rigid base mounting in tight mechanical rooms.
Key Benefits:- NEMA Premium Efficient: Engineered to lower utility costs and improve system sustainability under continuous load.
- Inverter Ready Operation: Compatible with Variable Frequency Drives (VFDs) for precise control and soft-starting.
- Durable Construction: Features ball bearings and a rigid base mount to ensure stability in high-vibration environments.
- Reversible Rotation: Offers flexibility for different mechanical drive configurations and field installations.
- Superior Thermal Management: The ODP enclosure allows for maximum cooling, extending the life of the internal windings.
- Is this motor suitable for outdoor use? Because this is an Open Drip Proof (ODP) motor, it should be used in environments where it is protected from direct weather and falling debris; for washdown or outdoor exposure, a TEFC enclosure is typically preferred.
- What is the shaft diameter for the 256T frame? The standard 256T frame motor features a 1.625-inch (1-5/8") shaft diameter.
- Can this 20 HP motor be converted to F2 mounting? Yes, the Baldor EM2515T is typically suitable for F1 to F2 conduit box conversion to accommodate different installation footprints.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
