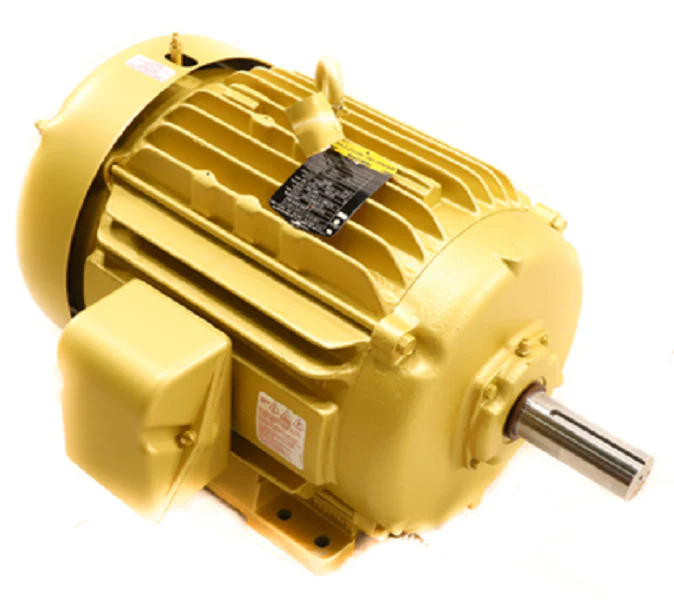

Baldor Motor EM2333T Motor
The Baldor EM2333T Motor is a high-performance, NEMA Premium efficient powerhouse designed for rigorous industrial applications. Engineered with a 15HP output and a synchronous speed of 1800RPM (1765RPM base), this three-phase AC motor is built into a heavy-duty 254T frame. The TEFC (Totally Enclosed Fan Cooled) enclosure provides superior protection against dust and moisture, making it an ideal choice for HVACR systems, compressors, centrifugal pumps, and industrial fans. Operating at 230/460V, this Super-E motor utilizes low-loss electrical grade lamination steel to maximize operational efficiency and reduce energy consumption. The cast iron construction and ball bearing design ensure structural integrity under continuous duty cycles. Contractors will appreciate the inverter-ready capabilities per NEMA MG1 Part 31.4.4.2, allowing for precise variable torque speed control. This reversible rotation motor features a 1.15 service factor and Class F insulation, ensuring reliable performance in demanding environments with ambient temperatures up to 40°C.
Key Benefits- NEMA Premium Efficiency: Optimized 92.4% full load efficiency to lower total cost of ownership through reduced energy draw.
- Industrial Durability: Rugged cast iron frame and gasketed conduit box provide maximum protection in harsh mechanical rooms.
- Advanced Thermal Management: TEFC cooling and Class F insulation prevent overheating during continuous duty cycles.
- Versatile Compatibility: 254T frame and dual voltage (230/460V) capability allow for seamless integration into various HVACR setups.
- VFD Optimized: Inverter-ready design facilitates integration with variable frequency drives for enhanced system control.
What are the full load amps for the EM2333T at 460V?
At a 460V rating, this motor typically pulls 18.1 Amps at full load, while at 230V, the draw increases to 36.2 Amps. Always verify your branch circuit protection matches these full load current specs.
Is this motor suitable for outdoor HVAC applications?
Yes, the TEFC (Totally Enclosed Fan Cooled) enclosure is designed to prevent the free exchange of air between the inside and outside of the case, protecting internal components from ambient contaminants, though a rain shield is recommended for direct vertical exposure.
Can I use a VFD with the Baldor EM2333T?
Absolutely. This model is inverter ready, meaning it is specifically designed to handle the voltage spikes and thermal demands associated with variable frequency drive operation in variable torque applications.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,027.48
-65%$2,027.48
$709.62Baldor Motor EM2333T Motor
The Baldor EM2333T Motor is a high-performance, NEMA Premium efficient powerhouse designed for rigorous industrial applications. Engineered with a 15HP output and a synchronous speed of 1800RPM (1765RPM base), this three-phase AC motor is built into a heavy-duty 254T frame. The TEFC (Totally Enclosed Fan Cooled) enclosure provides superior protection against dust and moisture, making it an ideal choice for HVACR systems, compressors, centrifugal pumps, and industrial fans. Operating at 230/460V, this Super-E motor utilizes low-loss electrical grade lamination steel to maximize operational efficiency and reduce energy consumption. The cast iron construction and ball bearing design ensure structural integrity under continuous duty cycles. Contractors will appreciate the inverter-ready capabilities per NEMA MG1 Part 31.4.4.2, allowing for precise variable torque speed control. This reversible rotation motor features a 1.15 service factor and Class F insulation, ensuring reliable performance in demanding environments with ambient temperatures up to 40°C.
Key Benefits- NEMA Premium Efficiency: Optimized 92.4% full load efficiency to lower total cost of ownership through reduced energy draw.
- Industrial Durability: Rugged cast iron frame and gasketed conduit box provide maximum protection in harsh mechanical rooms.
- Advanced Thermal Management: TEFC cooling and Class F insulation prevent overheating during continuous duty cycles.
- Versatile Compatibility: 254T frame and dual voltage (230/460V) capability allow for seamless integration into various HVACR setups.
- VFD Optimized: Inverter-ready design facilitates integration with variable frequency drives for enhanced system control.
What are the full load amps for the EM2333T at 460V?
At a 460V rating, this motor typically pulls 18.1 Amps at full load, while at 230V, the draw increases to 36.2 Amps. Always verify your branch circuit protection matches these full load current specs.
Is this motor suitable for outdoor HVAC applications?
Yes, the TEFC (Totally Enclosed Fan Cooled) enclosure is designed to prevent the free exchange of air between the inside and outside of the case, protecting internal components from ambient contaminants, though a rain shield is recommended for direct vertical exposure.
Can I use a VFD with the Baldor EM2333T?
Absolutely. This model is inverter ready, meaning it is specifically designed to handle the voltage spikes and thermal demands associated with variable frequency drive operation in variable torque applications.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
