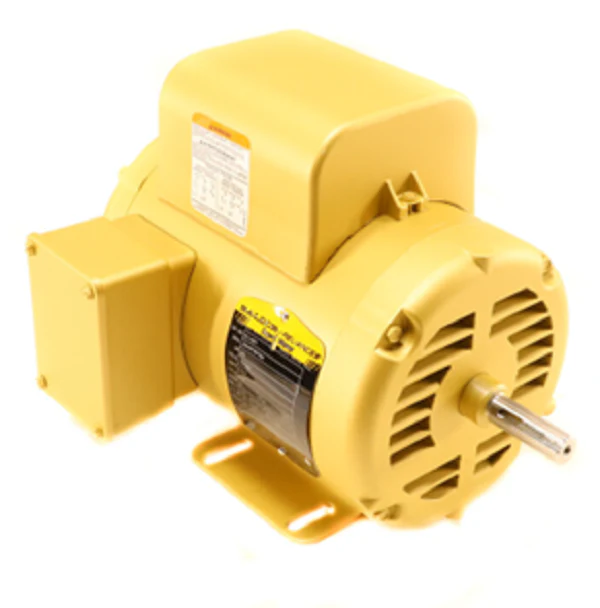

Baldor Motor EL11307 Motor
The Baldor-Reliance EL11307 is a heavy-duty, single-phase industrial motor designed for reliable performance in demanding HVACR and commercial applications. This 3/4 HP motor operates at a fixed 1750 RPM and features a versatile 115/230V dual-voltage configuration, making it compatible with standard field power requirements. Built on a 56 frame with a resilient base, the EL11307 motor utilizes a capacitor-start induction-run design to provide high starting torque, essential for driving belt-driven fans, blowers, and pumps. The TEFC (Totally Enclosed Fan Cooled) enclosure protects internal windings from dust and moisture, ensuring longevity in mechanical rooms or industrial environments. With a 1.25 service factor and NEMA 56 frame footed mounting, this unit is a direct replacement for many OEM drive configurations, offering the thermal stability and ball bearing construction required for continuous duty cycles.
- High Starting Torque: Capacitor-start design handles heavy mechanical loads during initial startup.
- Industrial Durability: TEFC enclosure prevents contamination from air-stream debris and shop particulates.
- Voltage Versatility: Dual-voltage 115/230V capability allows for integration into diverse electrical systems.
- Robust Mounting: Standard NEMA 56 frame with a rigid base ensures a secure, vibration-resistant installation.
- Thermal Efficiency: Engineered for continuous operation with a significant 1.25 service factor for overhead protection.
Common Questions
What is the frame size and shaft diameter for the EL11307?
This motor uses a standard NEMA 56 frame. The shaft diameter is typically 5/8 of an inch, which is standard for this frame size in industrial HVAC applications.
Can this motor be used for variable speed applications?
The EL11307 is a fixed-speed AC induction motor. For variable frequency drive (VFD) applications, you should verify if an inverter-rated motor is required for your specific controller setup.
Is this motor reversible in the field?
Yes, as a standard industrial single-phase motor, the rotation can be reversed by following the wiring diagram located on the motor nameplate or inside the conduit box.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
