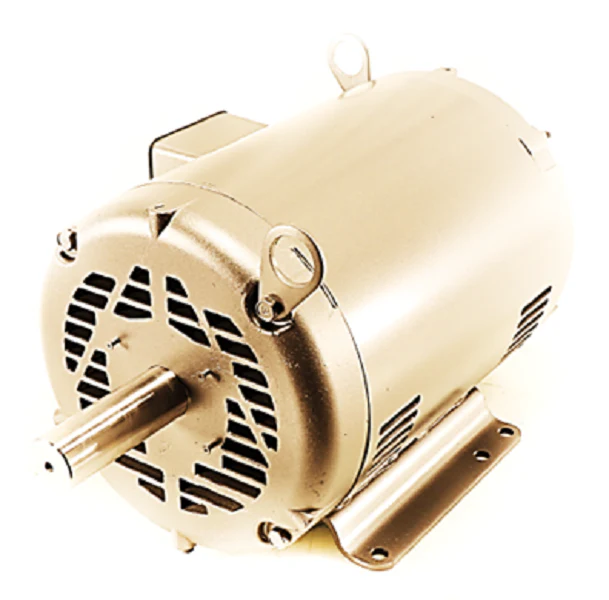

Baldor Motor EHM3313T Motor
The Baldor-Reliance EHM3313T is a heavy-duty 10HP industrial motor engineered for high-demand HVACR and pumping applications requiring a 215T frame. This three-phase unit operates at a base speed of 1800 RPM and is dual voltage rated for 230/460V at 60Hz. Built with a NEMA Premium efficient design, it utilizes a TEFC (Totally Enclosed Fan Cooled) enclosure to protect internal windings from dust, moisture, and debris, ensuring reliable performance in harsh mechanical rooms. The cast iron construction and ball bearing design provide the structural integrity needed for continuous belt-drive or direct-coupled loads. As a general-purpose motor, it is frequently used to drive centrifugal pumps, fans, and compressors where standard NEMA dimensions and high starting torque are required. Professional installers favor the EHM3313T for its precise balance and low vibration levels, which minimize wear on coupled components and reduce long-term maintenance cycles in commercial climate control systems.
Key Benefits
- NEMA Premium Efficiency: Optimized winding design reduces electrical consumption and heat generation during continuous operation.
- Rugged TEFC Construction: The Totally Enclosed Fan Cooled housing provides superior protection for 3-phase motor components in contaminated environments.
- Versatile 215T Frame: Standardized mounting footprint ensures a direct drop-in replacement for existing 10HP 1800 RPM motors.
- Dual Voltage Capability: Supports 230V/460V electrical configurations, providing flexibility for various site power requirements.
- Industrial Durability: Features high-quality ball bearings and a heavy-duty stator meant for industrial motor applications.
Common Questions
Is the EHM3313T compatible with Variable Frequency Drives (VFDs)?
Yes, this motor is designed to handle inverter-fed spike voltages, though it is recommended to verify the specific constant torque and variable torque speed ranges for your VFD application.
What are the wiring requirements for a 230/460V three-phase setup?
The motor features a standard 9-lead configuration. For 230V operation, the leads are wired in a low-voltage parallel Delta or Wye connection, while 460V requires a high-voltage series connection as indicated on the nameplate diagram.
What is the shaft diameter for the 215T frame?
The standard shaft diameter for a 215T NEMA frame motor is 1-3/8 inches, which is critical for selecting the correct sheaves, bushings, or couplings.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
