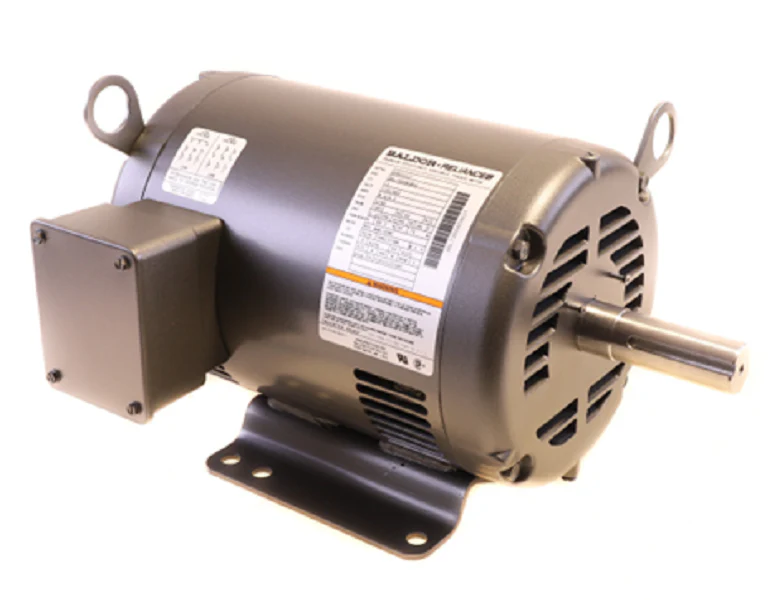

Baldor Motor EHM3211T Motor
The Baldor-Reliance EHM3211T is a high-performance 3 HP, 1765 RPM general-purpose HVAC motor designed for continuous duty in demanding air handling and pumping applications. This three-phase (3PH) induction motor features a NEMA 182T frame and is built with a heavy-gauge steel housing to ensure structural integrity under load. Operating at 230/460V, it utilizes a NEMA Premium efficiency design with an 89.5% rating at full load, effectively reducing operational costs. The OPSB enclosure (Open Slotted Band) provides optimal airflow for cooling while maintaining a compact footprint. For modern system integration, this motor is inverter ready, meeting NEMA MG1 Part 31.4.4.2 standards for use with variable frequency drives (VFDs). Engineering highlights include ball bearings with Polyrex EM grease for a wide temperature range and a 1.15 service factor to handle intermittent overloads without compromising performance. This reversable shaft motor is an industry standard for contractors requiring reliable four-pole power for fans and blowers.
Key Benefits
- NEMA Premium Efficient: Optimized 89.5% full-load efficiency rating to lower energy consumption in commercial HVACR systems.
- VFD Compatible: Fully inverter ready, allowing for precise speed control and integration with modern building automation.
- Rugged Construction: Features a 182T steel frame and standard 1.125-inch shaft diameter for drop-in compatibility with existing mounts.
- Industrial Bearings: Equipped with high-quality ball bearings and a 1.15 service factor for extended uptime in continuous duty cycles.
- Advanced Cooling: The OPSB enclosure design facilitates superior heat dissipation for stable operation at a 40°C ambient temperature.
Common Questions
What are the full load amps for this motor at 460V?At 460V, the Baldor EHM3211T draws 4.3 amps. When wired for 230V, the full load current is 8.6 amps.
Can this motor be mounted in any orientation?Yes, this model features a locked drive-end (DE) bearing, which allows for versatile mounting configurations, though it is standardly provided with a rigid base for stable foot mounting.
Is this motor suitable for use with a variable frequency drive?Absolutely. It is manufactured to be inverter ready and meets NEMA MG1 Part 31 standards, making it an ideal choice for 1765 RPM applications that require speed modulation.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
