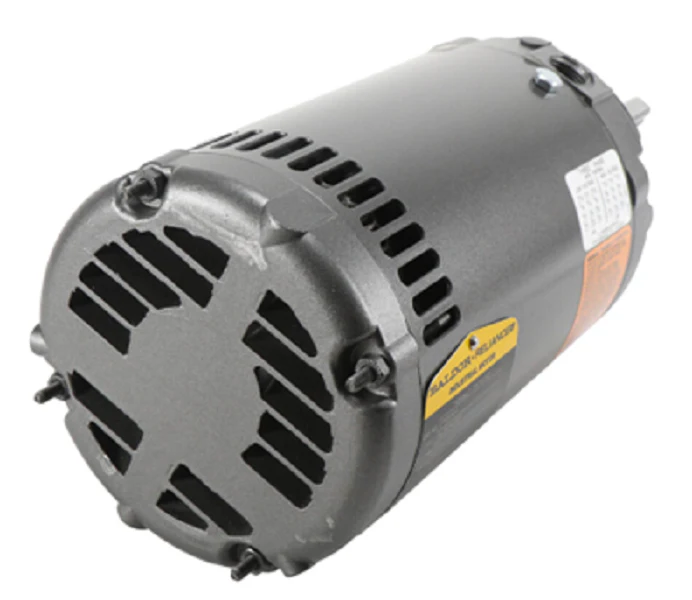

Baldor Motor CFM3046A Motor
The Baldor-Reliance CFM3046A is a heavy-duty 3/4 HP commercial condenser fan motor engineered for demanding HVACR applications. This totally enclosed air over (TEAO) motor is built with a 56Z frame and operates at a synchronous speed of 1140 RPM. Designed for versatility in the field, it features a tri-voltage rating of 208-230/460V and runs on three-phase power, making it a reliable drop-in replacement for various rooftop units and industrial cooling towers. The motor utilizes high-grade ball bearings and Class F insulation to handle high ambient temperatures often encountered in condenser sections. With its reversible rotation and rugged construction, the CFM3046A ensures consistent airflow and pressure across the coil, maintaining system efficiency even under high static loads. For contractors, the resilient mounting and standard shaft dimensions simplify the installation process in OEM HVAC replacements.
- Continuous Duty Performance: Rated for TEAO operation, ensuring the motor remains cool using the driven equipment's airflow.
- Triple Voltage Capability: Supports 208V, 230V, and 460V configurations, reducing truck stock requirements for 3-phase service calls.
- Enhanced Durability: Features all-angle mounting and a moisture-resistant winding system for exposure to the elements.
- Precision Balancing: Minimized vibration levels extend the service life of both the motor bearings and the fan blade assembly.
Common Questions
What is the frame size and shaft diameter for the CFM3046A?
This motor utilizes a 56Z frame. While the 56 series is standard, the "Z" suffix often indicates a specific shaft modification; always verify your fan blade bore diameter matches the 5/8-inch shaft typically found on this Baldor model.
Can this motor be used in single-phase applications?
No, the Baldor CFM3046A is a three-phase HVAC motor. Attempting to wire this to single-phase power will result in immediate failure. Always verify the incoming service voltage and phase at the contactor.
Is the rotation reversible on this condenser motor?
Yes, as a three-phase motor, rotation is easily reversed by swapping any two power leads at the motor junction box or the starter terminal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
