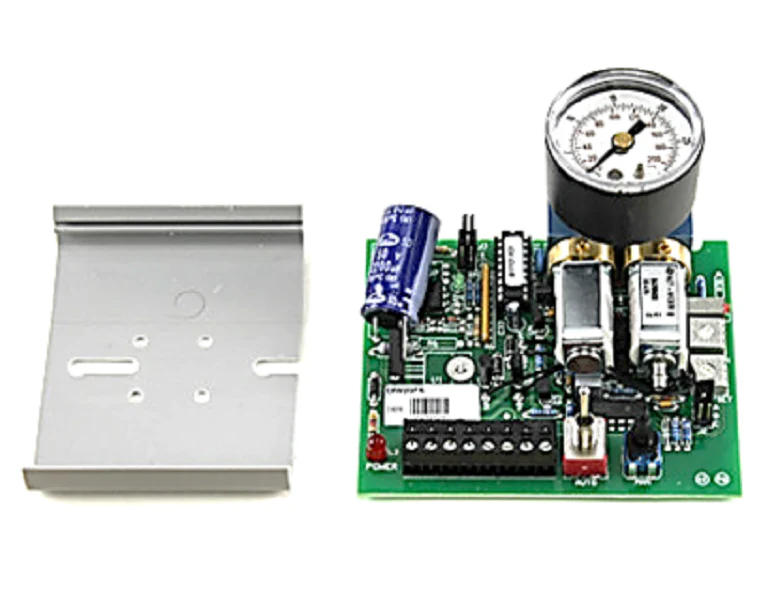

Automation Components Inc (ACI) EPW2GFS Control
The Automation Components Inc (ACI) EPW2GFS Control is a high-performance PWM to pneumatic transducer designed to convert pulse width modulation or digital signals into a proportional pneumatic output (0 to 20 psig). This dual valve pneumatic interface is engineered with a fail-safe 3-way branch exhaust valve that automatically depletes branch line air during a power failure, ensuring system safety. The unit features jumper-selectable input timing and adjustable pressure ranges (0–10, 0–15, 0–20 psi), providing versatile integration for HVAC pneumatic controls. For precise monitoring, the EPW2GFS includes a 0-5 VDC feedback signal that varies linearly with branch pressure. Designed for efficiency, this NIST traceable module includes an integrated pressure gauge and a manual override potentiometer, allowing for easy field troubleshooting and service. Its panel-mount design separates electrical and pneumatic connections for streamlined installation in complex industrial automation environments.
Key Benefits- Fail-Safe Protection: The 3-way exhaust valve automatically vents branch pressure upon power loss to prevent equipment damage.
- Precise Signal Conversion: Converts digital PWM or pulse signals into stable psig outputs with NIST traceable factory calibration.
- Real-Time Feedback: Features a 0-5 VDC feedback signal to provide precise branch line pressure data back to your controller.
- Field Adjustability: Includes a manual override pot and dual LEDs for immediate status verification and manual system testing.
- Reduced Air Consumption: The dual-valve design does not bleed air at the set point, improving compressor efficiency compared to constant-bleed models.
What happens if the ACI EPW2GFS loses power?
As a fail-safe model, the 3-way valve will quickly exhaust all branch line air to zero psig immediately upon power failure.
Can I adjust the pressure range in the field?
Yes. The EPW2GFS features jumper-selectable ranges for 0-10, 0-15, and 0-20 psi, which can be further fine-tuned using the onboard span and offset potentiometers.
What type of power supply is required?
This pneumatic transducer typically operates on 24 VAC or 24 VDC power, making it compatible with most standard industrial and HVAC control circuits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
