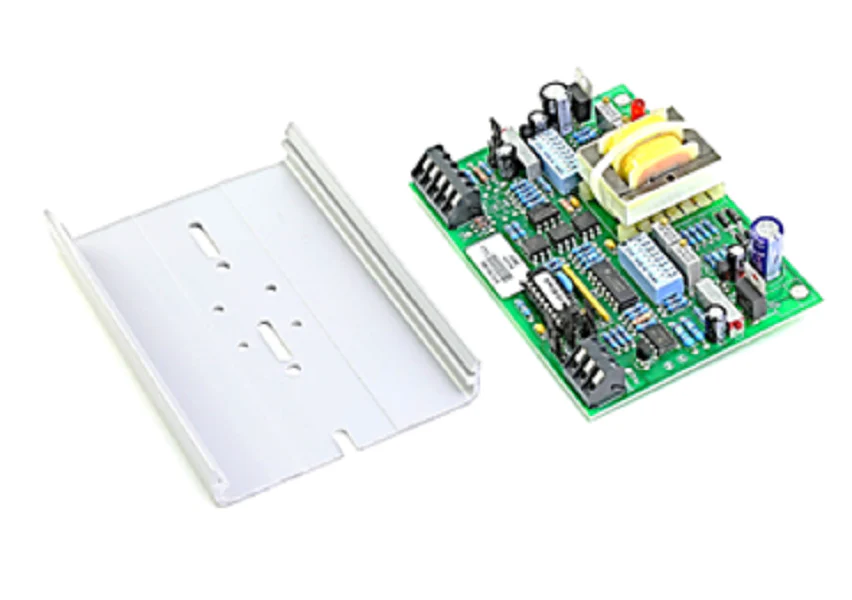

Automation Components Inc (ACI) AIM2 Controller
The Automation Components Inc (ACI) AIM2 Controller is a high-performance analog isolation module designed to provide electrical separation and signal rescaling for critical building automation systems. By optically isolating analog voltage or current signals, the AIM2 effectively eliminates ground loops and protects sensitive controllers from electrical noise or interference. This versatile device accepts a wide range of input signals, spanning 0 to 20 VDC or 0 to 20 mA, and can be field-calibrated to produce a corresponding isolated output within those same ranges. Whether you are managing grounded electrical actuators, fluorescent light dimmers, or variable frequency motor drives, this module ensures precise signal conversion and system stability. Featuring an onboard 24 VAC isolation transformer to power the isolated output, the ACI AIM2 is an essential component for technicians seeking to resolve complex analog signal isolation challenges in industrial and commercial HVACR environments.
Key Benefits- Optical Isolation: Provides up to 1500 VDC of analog optical isolation to protect equipment from voltage surges and electrical interference.
- Versatile Signal Handling: Supports both voltage to current conversion and current to voltage rescaling, with sink or source options.
- Field Calibratable: Offers preset or adjustable input/output ranges, allowing for precise signal rescaling tailored to specific site requirements.
- Integrated Power Solution: Features an onboard transformer to simplify wiring by supplying power directly to the isolated output side.
- Enhanced System Reliability: Prevents ground loop issues that typically cause signal drift or equipment malfunction in complex HVAC networks.
How do I resolve a ground loop in my HVAC control circuit?
Installing an analog isolation module like the ACI AIM2 breaks the direct electrical connection between the controller and the output device, effectively stopping ground loop interference while maintaining signal integrity.
Can the AIM2 convert a 0-10V signal to a 4-20mA signal?
Yes, the AIM2 is designed for signal conversion; it can accept various voltage inputs and provide a rescaled current output (sink or source) based on your specific HVAC control signals.
What power source is required for the AIM2?
The module requires one external 24 VAC isolation transformer with a floating secondary. It uses this to power the board and its own internal isolation transformer for the output signal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
