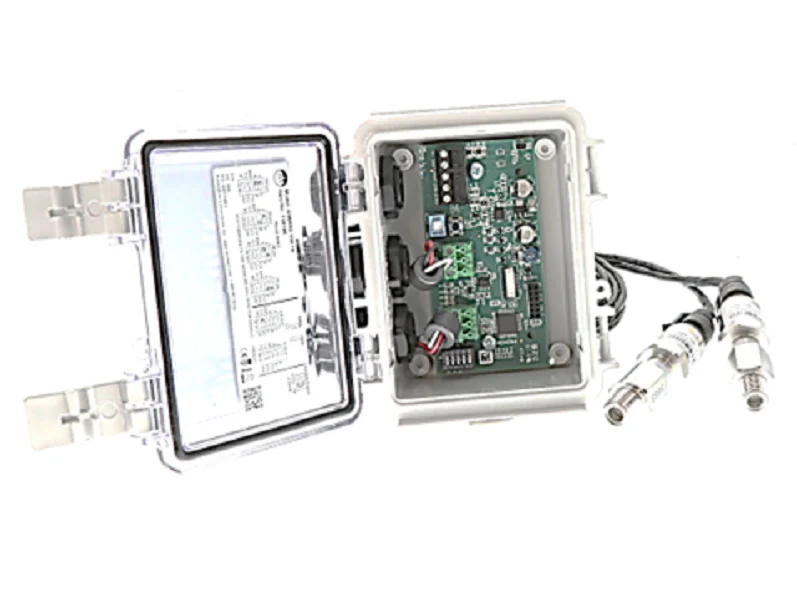

Automation Components Inc (ACI) A/WPR2-100-10' Transducer
Optimize your liquid-based pressure monitoring systems with the Automation Components Inc (ACI) A/WPR2-100-10. This high-performance wet to wet differential pressure transducer is engineered to deliver precise measurements for HVAC and process control applications. It features a 0-100 PSI range and a 10’ remote cable, providing exceptional installation flexibility by allowing the dual remote sensors to be mounted directly on your piping. This eliminates the need for expensive plumbing manifolds while reducing potential leak points. The inclusion of a push button auto zero function ensures long-term accuracy and simplified field calibration.
The A/WPR2-100-10 is built with durable 304 stainless steel diaphragms and ceramic capacitive sensing elements, making it compatible with a wide range of liquids, gases, and refrigerants. This differential pressure transmitter supports field-selectable outputs, including 4-20 mA, 0-5 VDC, and 0-10 VDC, ensuring seamless integration with almost any building automation system (BAS). Whether you are monitoring pump performance, chiller efficiency, or pressure drops across large filters, this robust sensor provides the reliable data needed for peak system efficiency.
Key Benefits- Enhanced Mounting Flexibility: Remote probes with a 10’ cable allow for sensing directly at the source without complex hard-piping.
- Field-Adjustable Performance: Features four selectable pressure ranges and three output signal options for versatile application use.
- Automated Calibration: The push button auto zero allows for rapid recalibration to maintain high-accuracy readings.
- Rugged Construction: Durable NEMA 4X rated enclosure and stainless steel wetted parts withstand demanding mechanical environments.
Can this sensor be used with refrigerants?
Yes, the 304L stainless steel diaphragm is compatible with most non-corrosive liquids, gases, and refrigerants found in commercial HVAC systems.
What is the benefit of the remote probe design?
The remote probes simplify installation by allowing the main transmitter housing to be mounted in an accessible location while the sensors are positioned directly on the process lines.
Does this unit require a specific power supply?
The transmitter is compatible with 18-36 VDC for current outputs and 16-36 VDC or 24 VAC for voltage outputs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
