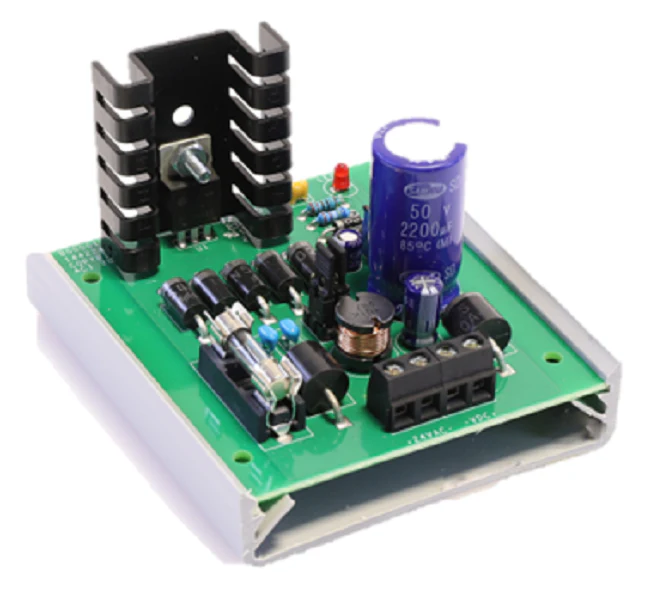

Automation Components Inc (ACI) A/PS24-24V-S Power Supply
The Automation Components Inc (ACI) A/PS24-24V-S Power Supply is a precision-engineered 24VDC Adjustable Power Supply designed for reliability in commercial HVACR and industrial automation systems. Functioning as the direct high-performance replacement for the legacy A/PS1.5 model, this unit converts a 24 VAC input from a Class 2 transformer into a stable, regulated output voltage. With an integrated onboard potentiometer, technicians can easily perform field adjustments, fine-tuning the factory-set 24 VDC output to any value between 1.5 and 26 VDC. The A/PS24-24V-S offers maximum installation flexibility through its jumper shunt selection, allowing users to toggle between Half-Wave and Full-Wave rectification modes based on specific application requirements. Housed in a durable UL94 V-0 rated PVC snap track mounting, this power supply ensures a secure and organized fit within electrical panels or equipment enclosures, making it an essential component for DC power regulation and transducer supply applications.
Key Benefits
- Adjustable DC Output: Provides a versatile range from 1.5 to 26 VDC, allowing for precise control of sensitive electronics.
- Dual Rectification Modes: Jumper-selectable configurations enable easy switching between half-wave and full-wave modes.
- Easy Installation: Features standard snap track mounting for rapid, tool-free integration into existing control panels.
- Built-in Protection: Equipped with internal current limiting and thermal protection to prevent damage from overloads.
- Visual Diagnostics: Includes a red LED power indicator for immediate status verification in the field.
Common Questions
Can I use this to replace my old A/PS1.5 unit?
Yes, the A/PS24-24V-S is the official direct replacement for the A/PS1.5, offering the same form factor with enhanced technical features.
Does it require a specific type of transformer?
It is recommended to use an isolated UL-listed Class 2 transformer with a 24 VAC secondary to provide the necessary input voltage.
How do I adjust the output voltage?
The output can be manually adjusted using a small flat-head screwdriver on the onboard potentiometer (P1) located on the circuit board.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
