Automation Components Inc (ACI) A/DLP-010-W-U-D-A0 Pressure Switch

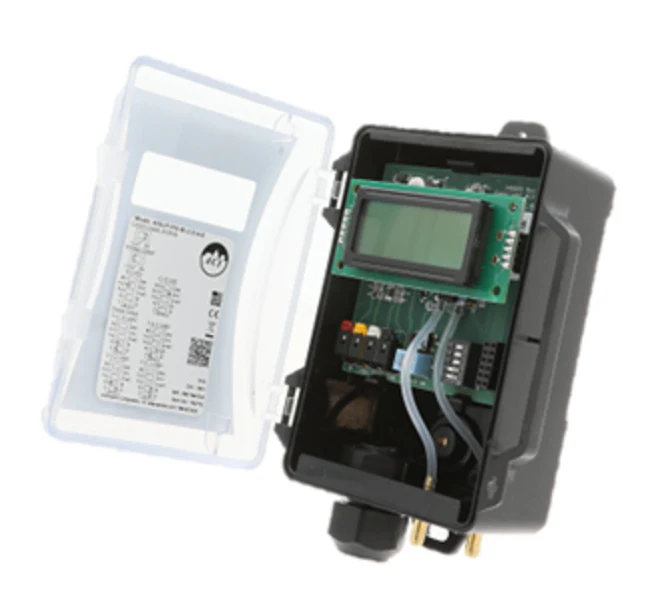

The Automation Components Inc (ACI) A/DLP-010-W-U-D-A0 is a high-precision differential pressure transmitter engineered for critical building automation systems and duct static pressure monitoring. Utilizing a robust piezoresistive silicon sensing element, this unit delivers a standard 0.5% FSO accuracy for low-pressure applications. As the direct replacement for the legacy A/DLP-010-WUDA-0, it features a 5-digit LCD display for real-time diagnostics and a hinged cover with an integrated locking tab, allowing field technicians to quickly access field-selectable ranges and analog outputs (4-20 mA, 0-5 VDC, or 0-10 VDC).
Designed for the rigors of commercial HVAC systems, the A/DLP-010-W-U-D-A0 offers eight selectable pressure ranges from 0-1 to 0-10 inches of water column (inWC) in both unidirectional and bidirectional modes. The pushbutton zero function ensures long-term calibration stability by neutralizing sensor drift without the need for specialized tools. This static pressure sensor is housed in a UL94-5VA flame-retardant polycarbonate enclosure, making it ideal for filter monitoring, air flow measurement, and process control in high-demand environments.
Key Benefits
- Field-Selectable Flexibility: Easily adjust between 1, 2, 5, and 10 inWC ranges and multiple output signals to match specific site requirements.
- High Accuracy Sensing: The ±0.5% full scale accuracy ensures reliable data for VAV box control and air handler performance.
- Simplified Installation: Features color-coded terminal blocks and a hinged enclosure for rapid field wiring and setup.
- Direct Retrofit: Seamlessly replaces the discontinued A/DLP-010-WUDA-0 with modern electronics and enhanced durability.
Common Questions
Can this sensor be used for bidirectional flow monitoring?
Yes, the A/DLP-010-W-U-D-A0 supports field-selectable bidirectional modes (e.g., ±1, ±2, ±5, ±10 inWC), which is essential for monitoring building pressure or differential across specific dampers.
What is the proper procedure for zeroing the sensor?
The sensor must be zeroed with no pressure applied to either port. Press and hold the pushbutton zero for several seconds; on LCD models, the "AUTOZERO" icon will flash to confirm the offset has been cleared.
Is this unit compatible with 24 VAC power?
While the 4-20 mA loop typically requires 16-36 VDC, the voltage output configurations (0-5/0-10 VDC) are compatible with 24 VAC/VDC power supplies commonly found in HVAC controllers.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
