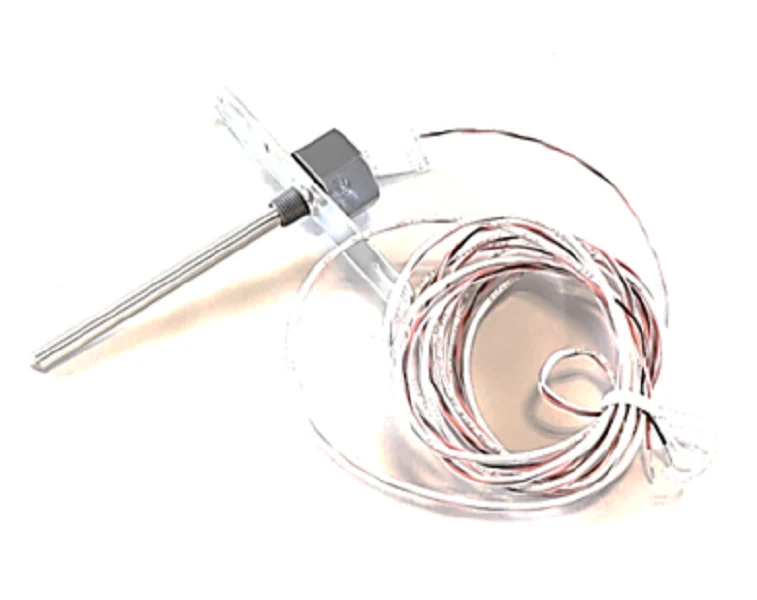

Automation Components Inc (ACI) A/CP-DO-4-10-CL2P Sensor
The Automation Components Inc (ACI) A/CP-DO-4-10-CL2P is a high-performance 10K Ohm Type II thermistor designed for precision duct temperature sensing in HVAC Building Automation Systems (BAS) and light industrial environments. Featuring a 4-inch 304 stainless steel probe, this sensor ensures accurate thermal monitoring for air handling units (AHU), supply/return air ducts, and zone control applications. The double encapsulated sensor provides superior protection against moisture and vibration, while the integrated mounting flange facilitates a secure, leak-proof installation. Equipped with a 10-foot plenum rated cable (CL2P), this shielded sensor is rated for extreme environments ranging from -40 to 302°F (-40 to 150°C). By utilizing a negative temperature coefficient (NTC) output, the A/CP-DO-4-10-CL2P delivers a predictable and stable resistance signal, making it compatible with most major building controllers and temperature monitoring platforms that require a reliable duct mount sensor for long-term operational efficiency.
Key Benefits- Enhanced Durability: Double encapsulation process eliminates moisture ingress, extending the life of the sensor in high-humidity duct environments.
- Versatile Compatibility: The 10K Ohm Type II resistance curve is a standard specification for most modern HVAC and building automation controllers.
- Safe for Plenum Spaces: The 10-foot shielded CL2P cable meets fire safety standards for installation in air plenums and tight ceiling spaces.
- Simplified Installation: Features a built-in mounting flange and an insulation pad to create a tight seal and dampen vibration at the measurement point.
Is this sensor compatible with my specific controller?
This model uses a 10K Type II thermistor curve. It is compatible with systems from manufacturers like Johnson Controls, ABB, and others that specify a 10,000 Ohm @ 77°F (25°C) Type II NTC sensor.
Where should the 4-inch probe be positioned for best accuracy?
For optimal readings, the probe should be installed in the center of the air stream. The 4-inch length is ideal for smaller to medium-sized ductwork where space and precision are critical.
Can this cable be used in return air plenums?
Yes, the included CL2P-rated cable is specifically designed for use in plenum spaces, meeting strict fire and smoke safety requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
