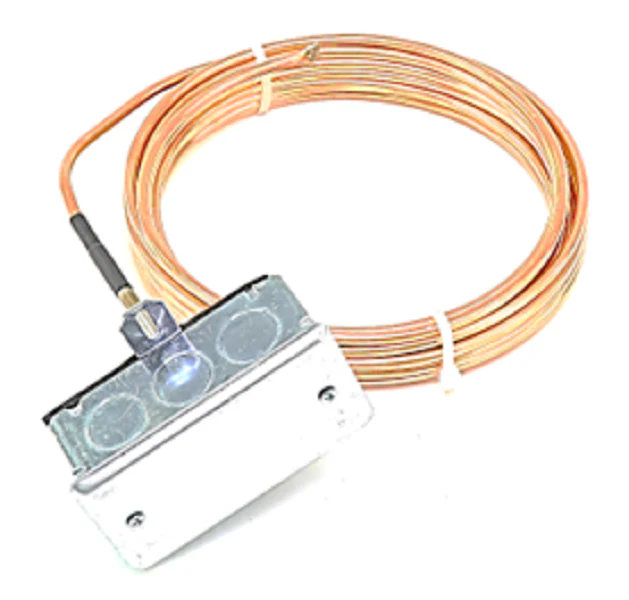

Automation Components Inc (ACI) A/CP-A-24-GD Thermistor
The ACI A/CP-A-24-GD is a high-performance duct averaging temperature sensor engineered for precise thermal monitoring in large-scale HVAC and Building Automation Systems (BAS). This 10K Type II Thermistor features a 24-foot bendable copper capillary, housing nine sensing elements wired in a series/parallel configuration to provide an accurate resistance output of 10K Ohms at 77°F. The copper sensing element offers superior thermal conductivity and natural antibacterial properties, effectively resisting mold and airborne contaminants within the ductwork. Specifically designed for air handling units, data centers, and zone control, the A/CP-A-24-GD provides an averaged temperature reading that far exceeds the reliability of single-point sensors. Encased in a rugged galvanized steel enclosure (GD) with a NEMA 1 rating, the unit includes a foam pad to dampen mechanical vibrations and ensure a moisture-resistant seal. For optimal performance, the flexible capillary should be installed in a serpentine pattern across the air stream to capture comprehensive data for discharge or supply air monitoring.
Key Benefits:- Enhanced Accuracy: Utilizes 9 sensing points across a 24-foot probe for a comprehensive averaged temperature reading.
- Superior Conductivity: Bendable copper construction provides faster response times and better corrosion resistance than aluminum alternatives.
- Quick Installation: Features a galvanized metal box-bendable configuration with a integrated mounting flange and vibration-dampening foam pad.
- Versatile Compatibility: Standard 10K Ohm @ 77 Deg F (Type II) curve integrates seamlessly with most existing HVAC controllers.
- Anti-Microbial Properties: Copper naturally inhibits the growth of bacteria and mold commonly found in large-scale duct systems.
- What is the difference between a single-point and an averaging sensor? While a single-point sensor measures temperature at one specific spot, the ACI A/CP-A-24-GD averages values across its entire 24-foot length, preventing inaccurate readings caused by air stratification in large ducts.
- Can this sensor be used in outdoor environments? The GD enclosure is NEMA 1 rated for indoor use. For outdoor or high-moisture applications, a NEMA 3R or NEMA 4X rated housing is typically required.
- How should the copper capillary be mounted? It is recommended to install the probe in a serpentine fashion using mounting clips, ensuring smooth arcs to prevent kinking the copper tube.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
