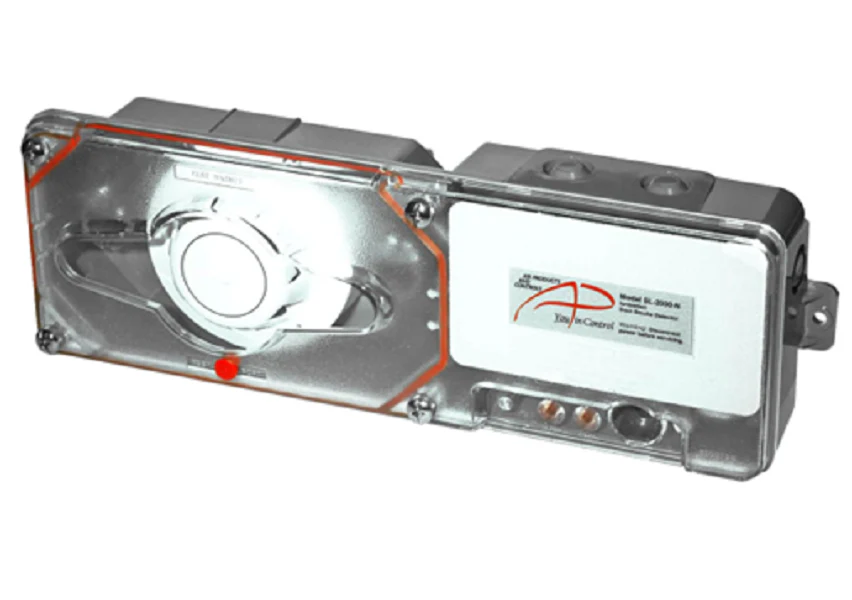

Automation Components Inc (ACI) 105792 Smoke Detector
The Automation Components Inc (ACI) 105792 Smoke Detector is a high-performance photoelectric duct smoke detector (Model SL-2000-P) designed for early detection of combustion within HVAC systems. Engineering for versatile application, this 4-wire unit supports multiple input voltages including 24 VAC/VDC, 115 VAC, and 230 VAC, making it an ideal HVAC duct smoke detector for commercial, industrial, and residential building automation. It operates effectively in air velocities ranging from 100 to 4,000 feet per minute, ensuring reliable smoke detection in HVAC ducts even in high-airflow environments. The SL-2000-P features a clear cover for rapid visual inspection and a patented "No-Tools Required" design for effortless installation of sampling tubes. Equipped with two sets of 10A Form C alarm contacts and one set of 10A Form C trouble contacts, this photoelectric sensor provides robust integration with fire alarm control panels and building management systems to prevent the recirculation of smoke through fans and blowers.
Key Benefits:
- Universal Compatibility: Operates on 24V, 115V, or 230V power supplies for seamless integration into various HVACR electrical systems.
- Interchangeable Sensor Heads: Designed with a modular base that allows for easy removal and cleaning of the photoelectric detector head without disturbing the housing.
- Early Warning Protection: Specifically engineered to detect smoke and combustion products to trigger immediate fan shutdown, enhancing life safety protocols.
- Durable Enclosure: Features a NEMA 1 rated grey plastic backbox with a clear Makrolon 94V-0 cover for high-visibility monitoring of the internal LED status.
- Streamlined Installation: Includes a 7-inch exhaust tube and mounting template, supporting rapid deployment on both round and rectangular ducts.
Common Questions:
Do I need to order sampling tubes separately?
Yes, while a 7-inch exhaust tube is included, a sampling tube (STN series) must be selected based on your specific duct width (available in 1, 2.5, 5, or 10-foot lengths).
How do I test the device without removing the cover?
The SL-2000-P features a patented test port valve and an included test magnet, allowing technicians to perform aerosol smoke tests or magnetic functional tests externally.
Can this detector be used in freezing environments?
The operating temperature range for the SL-2000-P is 32°F to 140°F (0°C to 60°C). For outdoor or unconditioned spaces, a weatherproof NEMA 3R enclosure (WP-2000) is recommended.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
