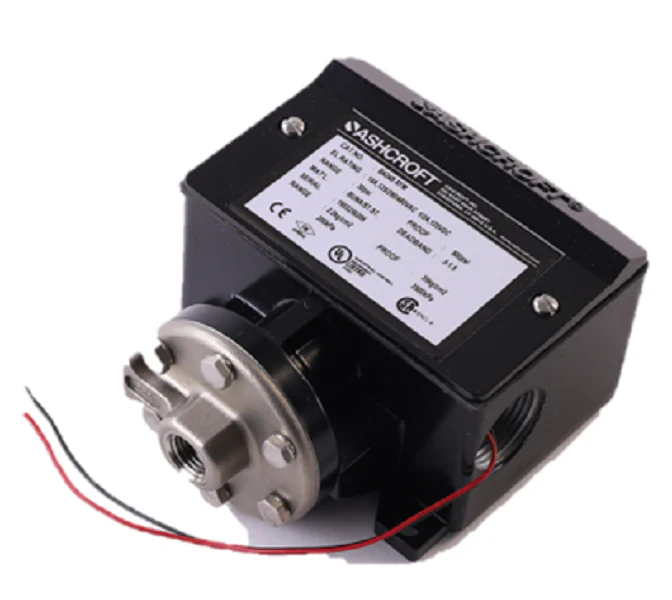

Ashcroft B424BXFM-30 Pressure Switch
The Ashcroft B424BXFM-30 Pressure Switch is a high-performance, industrial-grade pressure switch engineered for precise monitoring and control in demanding environments. Featuring a 0-30 PSI pressure range, this B-Series pressure switch utilizes a Single Pole Double Throw (SPDT) switch element encased in a rugged, watertight NEMA 4X enclosure with an epoxy-coated aluminum finish for superior corrosion resistance. Designed with a Buna N seal and diaphragm, it ensures excellent compatibility with a variety of process media, including water and oils. This FM approved pressure switch provides ±1% setpoint repeatability, making it a reliable solution for critical safety and alarm operations in HVACR, chemical, and power plant applications. The 1/4" NPT process connection and 3/4" NPT conduit opening allow for seamless integration into existing industrial pressure control systems, delivering long-cycle life and unwavering accuracy in the field.
Key Benefits- Enhanced Durability: The NEMA 4X and IP66 rated epoxy-coated aluminum enclosure protects internal components from moisture and harsh chemicals.
- High Precision: Delivers exceptional ±1% setpoint repeatability for consistent performance across its 0-30 PSI range.
- Versatile Application: Buna N wetted materials and SPDT action support a wide array of fluid power and process control tasks.
- Safety Certified: FM approval ensures the unit meets rigorous standards for industrial fire-safe and pilot duty applications.
- Can I adjust the setpoint in the field? Yes, the Ashcroft B424BXFM-30 features an internal setpoint locking screw and is adjustable from 15% to 100% of its range.
- What is the deadband for this model? This specific B-Series model typically features a fixed or limited adjustable deadband designed to provide reliable snap-action switching.
- Is this switch suitable for outdoor use? Absolutely. The watertight NEMA 4X enclosure is specifically designed to withstand rain, sleet, and external ice formation in outdoor environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
Original: $321.37
-65%$321.37
$112.48Ashcroft B424BXFM-30 Pressure Switch
The Ashcroft B424BXFM-30 Pressure Switch is a high-performance, industrial-grade pressure switch engineered for precise monitoring and control in demanding environments. Featuring a 0-30 PSI pressure range, this B-Series pressure switch utilizes a Single Pole Double Throw (SPDT) switch element encased in a rugged, watertight NEMA 4X enclosure with an epoxy-coated aluminum finish for superior corrosion resistance. Designed with a Buna N seal and diaphragm, it ensures excellent compatibility with a variety of process media, including water and oils. This FM approved pressure switch provides ±1% setpoint repeatability, making it a reliable solution for critical safety and alarm operations in HVACR, chemical, and power plant applications. The 1/4" NPT process connection and 3/4" NPT conduit opening allow for seamless integration into existing industrial pressure control systems, delivering long-cycle life and unwavering accuracy in the field.
Key Benefits- Enhanced Durability: The NEMA 4X and IP66 rated epoxy-coated aluminum enclosure protects internal components from moisture and harsh chemicals.
- High Precision: Delivers exceptional ±1% setpoint repeatability for consistent performance across its 0-30 PSI range.
- Versatile Application: Buna N wetted materials and SPDT action support a wide array of fluid power and process control tasks.
- Safety Certified: FM approval ensures the unit meets rigorous standards for industrial fire-safe and pilot duty applications.
- Can I adjust the setpoint in the field? Yes, the Ashcroft B424BXFM-30 features an internal setpoint locking screw and is adjustable from 15% to 100% of its range.
- What is the deadband for this model? This specific B-Series model typically features a fixed or limited adjustable deadband designed to provide reliable snap-action switching.
- Is this switch suitable for outdoor use? Absolutely. The watertight NEMA 4X enclosure is specifically designed to withstand rain, sleet, and external ice formation in outdoor environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
