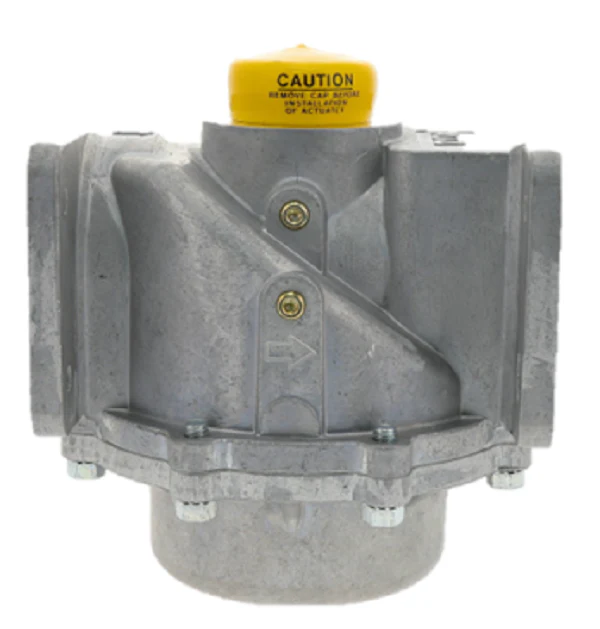

ASCO V710KBSV22 Valve Body
The ASCO V710KBSV22 Valve Body is a premier 2-way normally closed gas valve designed for high-performance safety shutoff in commercial and industrial systems. Engineered with a durable die-cast aluminum body, this 2.5-inch unit features an optimized internal geometry that achieves a high 120 Cv flow factor, supporting capacities up to 6,470 cfh. This specific configuration includes the V22 valve seal overtravel trim, also known as Proof of Closure (POC), making it essential for applications where stringent safety codes require verified valve sealing. Designed for seamless integration with ASCO AH Series Hydramotor actuators, this push-to-open valve is ideal for industrial gas burners, boilers, and furnaces operating within a 0-15 PSI range.
Key Benefits:
- High Flow Efficiency: Features a massive 120 Cv rating to ensure minimal pressure drop in high-demand HVACR and combustion applications.
- Certified Safety: Equipped with valve seal overtravel trim to meet advanced safety regulations and Proof of Closure requirements.
- Robust Construction: Built with die-cast aluminum and Nitrile seals to withstand ambient temperatures from -40°F to 150°F.
- Flexible Installation: Supports both NPT and flanged connections and can be mounted in any orientation for versatile site compatibility.
Common Questions:
Which actuators are compatible with the ASCO V710KBSV22?
This valve body is designed exclusively for use with ASCO AH Series Hydramotor (specifically AH2E or AH4E) push-type actuators. Use of non-ASCO actuators is not recommended for safety and performance reasons.
What is the purpose of the V22 suffix?
The V22 suffix indicates the inclusion of valve seal overtravel trim. This is a critical safety feature often required by code to provide a redundant seal or Proof of Closure (POC) verification.
Can this valve be used for proportional control?
No, the V710KBSV22 is a quick-opening model intended for on/off safety shutoff service. For metered or proportional flow control, a linear trim model (suffix V15) would be required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
