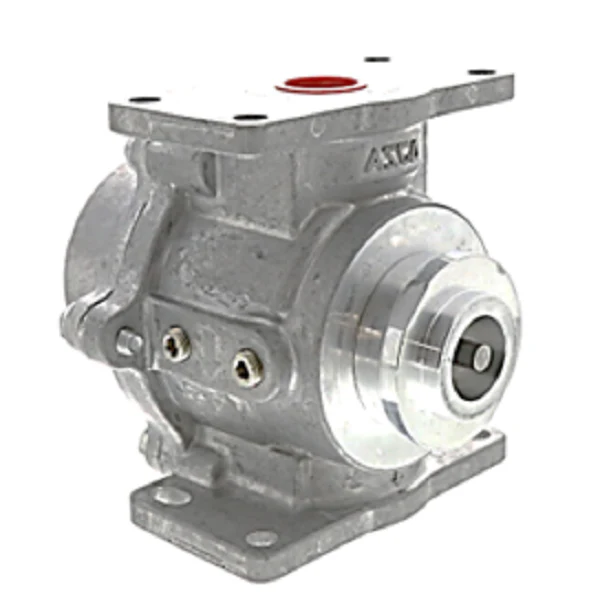

ASCO V710EBSV22 Valve Body

The ASCO V710EBSV22 Valve Body is a high-performance, 2-way normally closed component specifically engineered for the precise on/off control of commercial and industrial gas burners. This 3/4 inch die-cast aluminum valve body features a quick opening trim and is designed exclusively for seamless integration with AH Hydramotor actuators. With a flow factor of 14 Cv and a capacity of 754 cfh, it effectively manages fuel gas at operating pressures from 0 to 15 PSI. A distinguishing feature of the V22 suffix is the Valve Seal Overtravel (Proof of Closure) trim, which provides an added layer of safety by ensuring the valve seal exceeds the standard closure point, satisfying strict industrial safety codes and agency requirements. Built for versatility, this ASCO gas shut-off valve supports multi-poise mounting and includes upstream and downstream pipe taps for convenient routine testing and system diagnostics.

Key Benefits:

• Enhanced Safety: Includes Valve Seal Overtravel (V22) trim, often required by code for proof-of-closure safety standards.
• High Flow Efficiency: Delivers a 14 Cv flow factor with optimized internal geometry to minimize pressure drop in gas trains.
• Durable Construction: The die-cast aluminum body and Nitrile seals ensure long-term reliability in demanding HVACR environments.
• Flexible Installation: Designed for NPT or flanged connections with the ability to mount in any position when paired with an AH2E Hydramotor.
• Simplified Maintenance: Equipped with built-in pressure taps for quick field testing without breaking pipe connections.

Common Questions:

Which actuator is compatible with the ASCO V710EBSV22?

This valve body is designed exclusively for use with ASCO AH Series Hydramotor actuators, specifically models like the AH2E and AH4E.

What does the V22 suffix indicate?

The V22 suffix signifies the inclusion of Quick Opening with Valve Seal Overtravel trim, providing a "Proof of Closure" mechanism required for specific industrial safety certifications.

Can this valve be used for proportional control?

While the V710 series offers linear trim versions for proportional control, the V710EBSV22 is a quick-opening model optimized for on/off gas safety shut-off applications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
