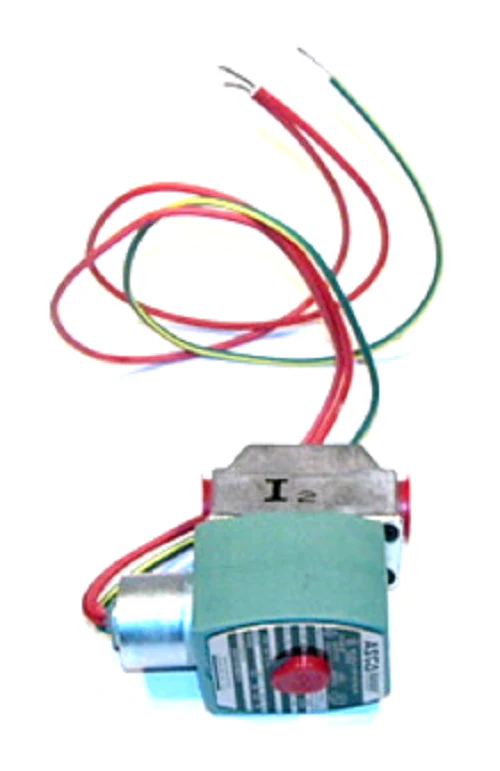

ASCO SV311A01N6CF5 Solenoid Valve
The ASCO SV311A01N6CF5 is a high-performance 2-way normally closed solenoid valve engineered specifically for gas pilot control in commercial and industrial combustion systems. This direct acting gas shutoff valve features a rugged aluminum body and a 3/8" NPT connection, making it an essential component for burners, boilers, and furnaces. Operating on 24Vac power, it delivers a 1.2 Cv flow capacity, supporting up to 64,000 BTU/hr at a low-pressure range of 0-15 PSI. The NEMA 4X enclosure ensures watertight protection, allowing for reliable operation in demanding environments. Designed with a direct lift mechanism and resilient soft seating, the ASCO RedHat SV311 provides a tight, leak-free shutoff. Additionally, the integrated 1/8" NPT downstream pipe tap allows for convenient routine pressure testing. This industrial solenoid valve is the professional choice for ensuring safety and precision in fuel gas management systems.
Key Benefits
- Precision Gas Control: Specifically designed for gas pilot control in industrial burners and commercial heating equipment.
- RedHat Reliability: Features a direct acting design with resilient soft seating to ensure a positive, tight shutoff every cycle.
- Durable Construction: Built with a lightweight yet robust aluminum body and stainless steel internal parts for long-term service.
- Enhanced Protection: The NEMA 4X watertight enclosure provides superior resistance to corrosion and environmental moisture.
- Maintenance Ready: Includes a 1/8" NPT downstream pipe tap with a plug for simplified system diagnostics and routine testing.
Common Questions
Is the ASCO SV311A01N6CF5 suitable for outdoor installation?
Yes, the valve is equipped with a NEMA 4X enclosure, which is designed to provide protection against falling dirt, rain, sleet, snow, and even hose-directed water, making it suitable for both indoor and outdoor applications.
What is the maximum pressure rating for this gas shutoff valve?
This specific model is rated for low-pressure fuel gas service with a maximum operating pressure differential of 15 PSI.
How fast does this solenoid valve respond?
The ASCO SV311A01N6CF5 is a high-response valve, featuring opening and closing times of less than one second, ensuring rapid shutoff for safety systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $640.92
-65%$640.92
$224.32ASCO SV311A01N6CF5 Solenoid Valve
The ASCO SV311A01N6CF5 is a high-performance 2-way normally closed solenoid valve engineered specifically for gas pilot control in commercial and industrial combustion systems. This direct acting gas shutoff valve features a rugged aluminum body and a 3/8" NPT connection, making it an essential component for burners, boilers, and furnaces. Operating on 24Vac power, it delivers a 1.2 Cv flow capacity, supporting up to 64,000 BTU/hr at a low-pressure range of 0-15 PSI. The NEMA 4X enclosure ensures watertight protection, allowing for reliable operation in demanding environments. Designed with a direct lift mechanism and resilient soft seating, the ASCO RedHat SV311 provides a tight, leak-free shutoff. Additionally, the integrated 1/8" NPT downstream pipe tap allows for convenient routine pressure testing. This industrial solenoid valve is the professional choice for ensuring safety and precision in fuel gas management systems.
Key Benefits
- Precision Gas Control: Specifically designed for gas pilot control in industrial burners and commercial heating equipment.
- RedHat Reliability: Features a direct acting design with resilient soft seating to ensure a positive, tight shutoff every cycle.
- Durable Construction: Built with a lightweight yet robust aluminum body and stainless steel internal parts for long-term service.
- Enhanced Protection: The NEMA 4X watertight enclosure provides superior resistance to corrosion and environmental moisture.
- Maintenance Ready: Includes a 1/8" NPT downstream pipe tap with a plug for simplified system diagnostics and routine testing.
Common Questions
Is the ASCO SV311A01N6CF5 suitable for outdoor installation?
Yes, the valve is equipped with a NEMA 4X enclosure, which is designed to provide protection against falling dirt, rain, sleet, snow, and even hose-directed water, making it suitable for both indoor and outdoor applications.
What is the maximum pressure rating for this gas shutoff valve?
This specific model is rated for low-pressure fuel gas service with a maximum operating pressure differential of 15 PSI.
How fast does this solenoid valve respond?
The ASCO SV311A01N6CF5 is a high-response valve, featuring opening and closing times of less than one second, ensuring rapid shutoff for safety systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
