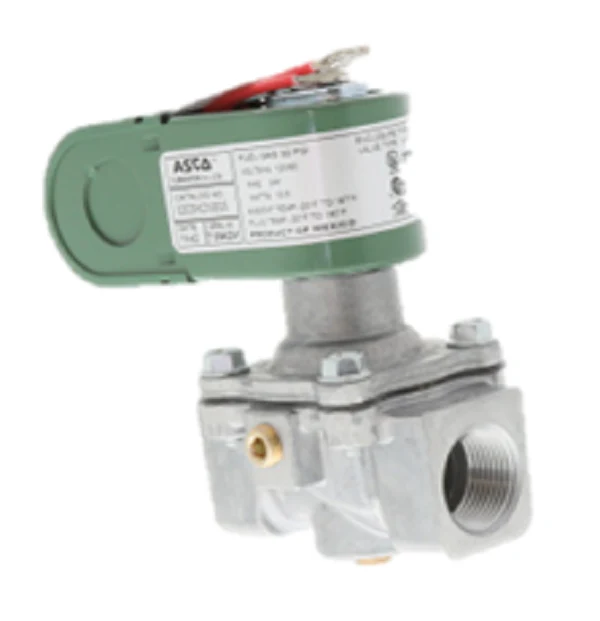

ASCO S262SH02N3EG5 Valve
The ASCO S262SH02N3EG5 Valve is a high-performance 3/4" NPT gas vent valve designed for critical safety in commercial and industrial combustion systems. This 2-way normally open solenoid valve operates as a dedicated "vent" in double block and vent systems, ensuring that any downstream gas leakage is safely exhausted to the atmosphere when the system is de-energized. Built with a rugged die-cast aluminum body and a zero-differential piloted diaphragm, this 120V gas solenoid valve handles pressures from 0 to 30 PSI with a high flow capacity of 4.7 Cv. Engineered for reliability, it features a 305 stainless steel core tube and NBR seals, making it an essential component for gas furnace safety and boiler fuel line management. Its fast response time—opening in less than one second—provides immediate protection for high-output burners and heating equipment.
Key Benefits- Enhanced System Safety: Provides reliable venting of fuel gas in the event of primary valve leakage, protecting high-demand HVACR systems.
- Zero-Differential Operation: The piloted diaphragm design ensures consistent performance even at 0 PSI minimum operating pressure.
- Durable Construction: Features aluminum body construction and stainless steel internal components for long-term resistance to wear.
- High Flow Capacity: Delivers a 4.7 Cv flow factor, supporting gas capacities up to 252,000 BTU/hr for efficient venting.
- Fast Response: Rapid solenoid actuation ensures the vent opens in less than 1 second to clear gas lines during shutdown.
What is the purpose of a normally open vent valve in a gas train?
In a double block and vent setup, the normally open valve stays open when power is lost or the system is off, allowing any trapped gas to escape safely outdoors rather than building up in the combustion chamber.
Can this ASCO S262 Series valve be mounted in any orientation?
Since this model has a 3/4" orifice, it is generally recommended to be mounted with the solenoid vertical and upright, although many ASCO RedHat valves in this size range allow for multi-position mounting.
What media is compatible with the ASCO S262SH02N3EG5?
This low-pressure gas valve is specifically designed for use with natural gas, propane, and clean air in fuel-burning applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
