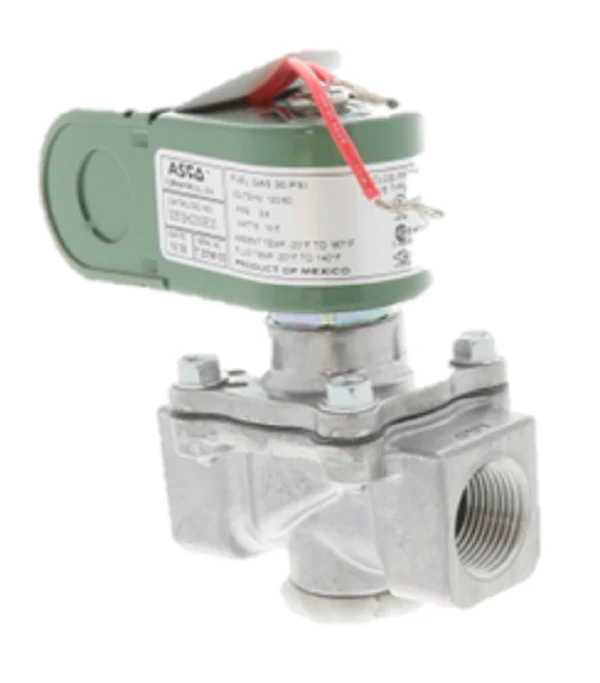

ASCO S261SH02N3EG5 Valve
The ASCO S261SH02N3EG5 Valve is an engineered solenoid safety gas valve designed for high-performance on-off control within industrial and commercial combustion systems. This normally closed (NC), pilot-operated shutoff valve features a durable die-cast aluminum body, making it a reliable choice for managing fuel gas in gas burners and boilers. Optimized for efficiency, the 3/4" NPT port and 3/4" orifice support a high flow capacity (Cv of 8.0) and a maximum operating pressure of 30 PSI. Built to withstand demanding conditions, it functions across a zero differential pressure range and is suitable for ambient temperatures up to 175°F. With rapid opening and closing cycles of less than one second, this 120V solenoid valve ensures immediate response for safety-critical applications. Its 360-degree rotatable junction box further simplifies HVAC industrial installation and maintenance, providing a versatile solution for precise fluid control.
Key Benefits
- Industrial Durability: Constructed with a die-cast aluminum body and stainless steel internal components for long-term resilience in harsh environments.
- Zero Differential Operation: The pilot-operated diaphragm design allows the valve to function reliably even at zero pressure differential.
- High Safety Standards: UL-listed, CSA-certified, and FM-approved for use as a safety shutoff valve in combustion systems.
- Efficient Fluid Control: Features a high flow factor (Cv 8.0) to accommodate rapid gas delivery with minimal pressure drop.
- Easy Maintenance: Equipped with upstream and downstream 1/8-inch NPT pipe taps for routine testing and pressure monitoring.
Common Questions
What type of media is the ASCO S261SH02N3EG5 compatible with?
This valve is specifically designed for the controlled shutoff of natural gas and other non-corrosive fuel gases used in commercial heating and industrial burner systems.
Can this valve be mounted in any orientation?
Yes, for 3/4-inch body sizes like the S261SH02N3EG5, the valve can be mounted in either horizontal or vertical positions to suit your specific piping configuration.
What is the primary function of a normally closed valve in an HVACR system?
In a Normally Closed (NC) configuration, the valve remains shut when power is removed, acting as a fail-safe to prevent gas flow until the 120V solenoid is intentionally energized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
