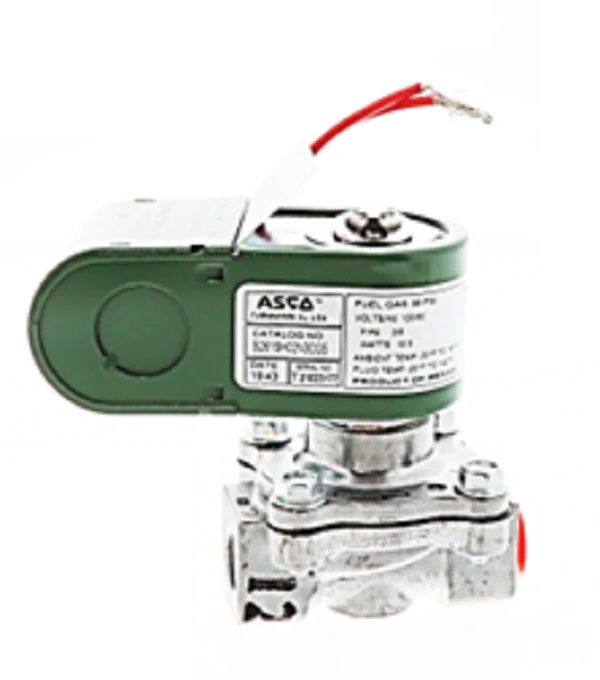

ASCO S261SH02N3CG5 Valve
The ASCO S261SH02N3CG5 Valve is a high-performance 2-way normally closed (NC) pilot-operated solenoid valve designed specifically for the precision on-off control of fuel gas. Engineering with a robust die-cast aluminum body, this 3/8" NPT valve is a staple in commercial and industrial gas burner systems. It features a unique zero differential piloted diaphragm, ensuring reliable operation even in low-pressure environments. Operating at 120V AC, this ASCO RedHat gas shutoff valve is built to handle natural gas, LP, and other combustible gases with a safe operating pressure range of 0-30 PSI. The integration of 1/8" NPT upstream and downstream pipe taps allows for simplified routine testing and maintenance. Designed for durability and rapid response, this solenoid shutoff valve provides tight seating and long-lasting performance in demanding HVACR applications, maintaining its integrity in ambient temperatures up to 175°F.
Key Benefits- Precise Gas Control: Optimized for on-off safety shutoff in industrial burners.
- Zero Pressure Differential: The internal pilot-operated design ensures the valve opens and closes reliably without requiring high line pressure.
- Rugged Construction: Durable die-cast aluminum body resists corrosion and provides structural strength.
- Easy Maintenance: Includes built-in pipe taps for quick pressure testing without disconnecting the line.
- Rapid Response: Engineered for quick opening and closing cycles to enhance system safety.
What media is compatible with the ASCO S261SH02N3CG5?
This valve is specifically designed for fuel gas applications, including natural gas, manufactured gas, and liquefied petroleum (LP) gas.
Can this valve be mounted in any orientation?
While ASCO valves are versatile, it is highly recommended to install the solenoid valve with the actuator in a vertical and upright position to prevent debris accumulation and ensure optimal diaphragm movement.
Is this a direct-acting or pilot-operated valve?
The S261SH02N3CG5 is a pilot-operated valve, utilizing internal pressure to assist in the opening and closing of the main orifice, which allows it to handle larger flows with a compact solenoid.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
