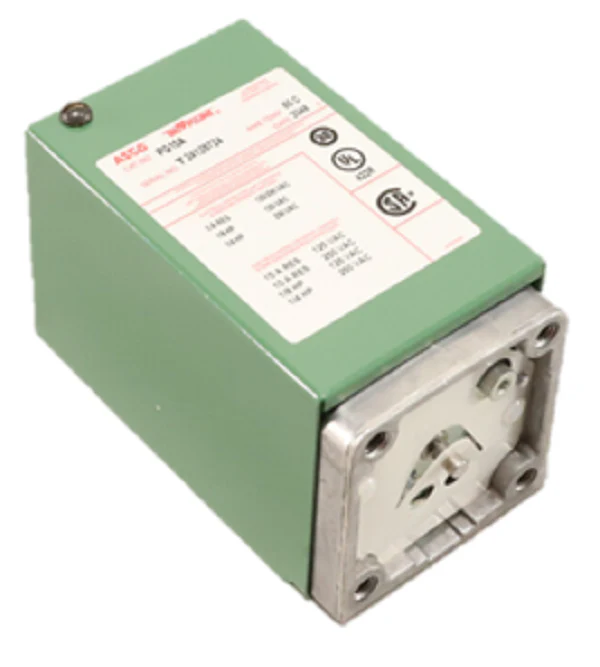

ASCO PG10A Switch
The ASCO PG10A Switch is a high-performance, General Purpose Pressure Switch unit designed for precision in demanding industrial environments. As a key component of the TRIPOINT P-Series, this Limited Adjustable Deadband Switch Unit features the unique ASCO alternating fulcrum balance plate, ensuring exceptional set point repeatability and long-term reliability. Built with a NEMA 1 enclosure made of zinc-coated steel, the PG10A provides a robust solution for monitoring and controlling pressure in applications involving air, water, oil, or corrosive fluids.
This industrial pressure control unit is engineered for ease of use, offering full frontal access to all wiring terminals and visual adjustment scales. Its compact, vibration-resistant design allows for installation in any orientation, making it ideal for space-constrained HVACR systems and compressor units. When paired with a compatible transducer, the PG10A delivers precise switching with 15-amp electrical ratings, supporting both AC and DC industrial power requirements while maintaining stable performance across varying ambient temperatures.
Key Benefits:- Precision Control: Features a limited adjustable deadband for accurate and repeatable switching within a specific pressure range.
- Durable Construction: Housed in a zinc-coated steel NEMA 1 enclosure to withstand harsh industrial conditions.
- Simplified Maintenance: Front-facing terminals and visual scales ensure fast wiring and easy field adjustments.
- Versatile Mounting: Compact, rugged design is vibration-resistant and can be mounted in any position.
- Tri-Point Technology: Utilizes a specialized balance plate mechanism for superior set point stability and long service life.
- What is a limited adjustable deadband? It is a specialized snap-action switch feature that allows for small variations in the difference between the set and reset points, providing tighter control than fixed deadband units.
- Can this switch handle both AC and DC loads? Yes, the PG10A is rated for 15 Amps at 125 VAC and is also compatible with 250 VAC and specific VDC current ratings.
- Does this include the transducer unit? No, the PG10A is the switch unit. For a complete system, it must be paired with a matching P-Series transducer unit suitable for your specific fluid and pressure range.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
