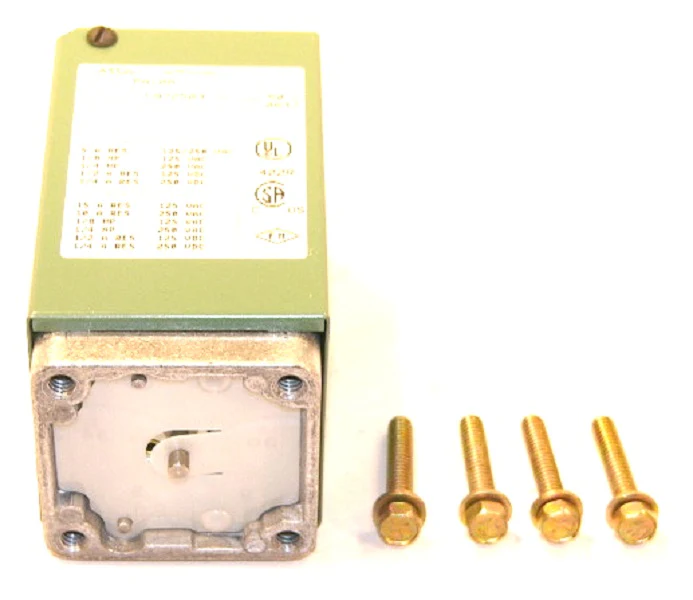

ASCO PA10A Switch
The ASCO PA10A Switch is a high-performance, industrial pressure switch designed for precision monitoring in HVACR and automation systems. Part of the renowned ASCO Tripoint P-Series, this 1/4" NPT adjustable deadband switch allows for customizable control between set and reset points, making it an essential component for process control applications. Built with a rugged NEMA 1 general purpose enclosure and a durable zinc-coated steel housing, it ensures long-term reliability in indoor environments. This versatile diaphragm-actuated switch is compatible with air, water, and oil, handling pressures up to 6000 PSI depending on the specific transducer unit paired. By providing a SPDT (Single Pole Double Throw) contact configuration, the ASCO PA10A offers flexible wiring options for both normally open and normally closed circuits, ensuring your systems remain balanced and responsive to pressure fluctuations.
Key Benefits:
- Precision Control: Features an adjustable deadband for fine-tuning the differential between rising and falling pressure signals.
- Rugged Construction: Encased in a NEMA 1 enclosure made of zinc-coated steel to protect internals from dust and accidental contact.
- High Repeatability: Engineered for accurate performance with a repeatability of ±1% of the operating range.
- Versatile Mounting: Compact design allows for installation in any orientation, fitting easily into tight mechanical spaces.
- Broad Compatibility: Suitable for a wide variety of fluids, including air, water, and light oils, used in HVACR systems and compressors.
Common Questions:
How do I adjust the deadband on the ASCO PA10A?
The ASCO PA10A utilizes a unique alternating fulcrum balance plate. You can adjust the high and low signal settings using a 1/4 inch wrench on the internal nuts, which allows you to set the specific range for your application's requirements.
What is the maximum electrical rating for this switch?
This general purpose pressure switch is rated for 15 Amps at 125 VAC or 10 Amps at 250 VAC. It also supports DC loads up to 0.5 Amps at 125 VDC, ensuring compatibility with standard industrial control circuits.
Can the ASCO PA10A be used in outdoor environments?
The standard PA10A comes with a NEMA 1 rating, which is intended for indoor use. For outdoor or washdown environments, a NEMA 4 watertight enclosure version would be required to prevent moisture ingress.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
Original: $1,846.94
-65%$1,846.94
$646.43ASCO PA10A Switch
