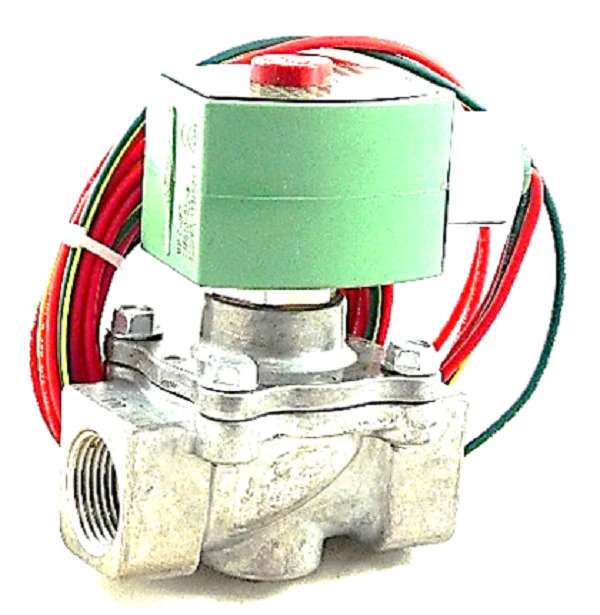

ASCO L8040G23 Valve
The ASCO L8040G23 Valve is a high-performance 2-way normally closed solenoid valve engineered specifically for low-pressure fuel gas safety shutoff and air service applications. Featuring a robust aluminum body and durable NBR (Buna-N) seals, this 3/4" NPT valve provides a substantial 9.5 Cv flow coefficient, ensuring efficient media handling for industrial and commercial burners. Designed for reliability, the ASCO RedHat L8040G23 operates on a standard 120Vac power supply and is equipped with a NEMA 4X enclosure, providing superior protection against water and corrosion in demanding environments. This direct-acting valve supports an operating pressure range of 0 to 2 PSI, making it an essential component for gas pilot control and main burner management. With 72-inch leads for flexible electrical installation, this valve meets rigorous safety standards, including UL, CSA, and FM approvals for gas shutoff solenoid valves.
Key Benefits:- Enhanced Durability: The lightweight aluminum body and NBR seals offer excellent resistance to fuel gas and inert air.
- Versatile Enclosure: Rated for NEMA 4X, ensuring the unit is watertight and corrosion-resistant for indoor or outdoor use.
- Optimized Flow: High-flow 9.5 Cv rating supports large capacity demands up to 512,000 BTU/hr.
- Simple Installation: Includes 72" electrical leads and a 3/4" NPT connection for fast integration into existing HVACR systems.
- Safety Certified: Trusted ASCO RedHat technology with UL and CSA safety shutoff certifications.
- What types of gas can the ASCO L8040G23 handle? It is primarily designed for fuel gas, including natural gas and propane, as well as inert air.
- Can this valve be mounted in any orientation? Yes, this specific series is designed to be mountable in any position for maximum installation flexibility.
- Is the coil protected against moisture? Yes, the NEMA 4X enclosure and molded epoxy coil design provide excellent protection against water ingress and hose-directed spray.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
