ASCO K3A782V Valve

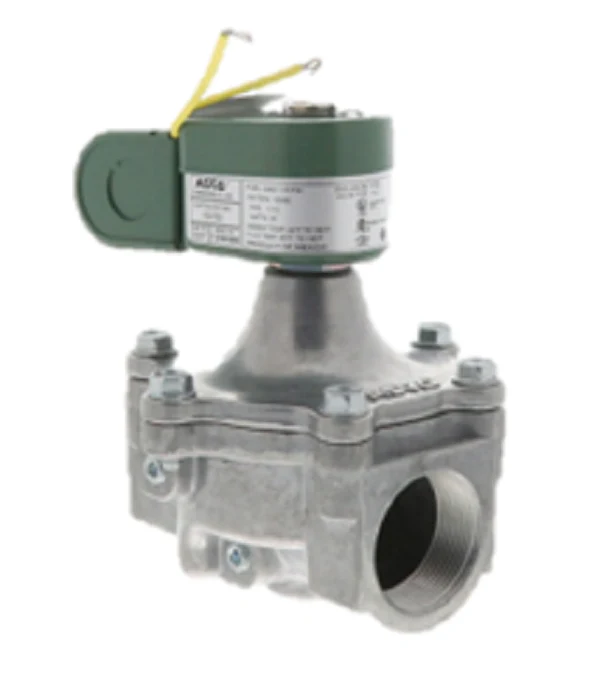

The ASCO K3A782V Valve is a robust 1 1/2" 120V normally closed gas solenoid valve engineered for critical safety shut-off in commercial and industrial combustion systems. Designed as a high-performance 2-way safety shut-off valve, it manages fuel isolation for burners, boilers, and furnaces with a 1.5 PSI maximum operating pressure. This direct acting gas valve features a durable die-cast aluminum body and high-flow 1 3/8" orifice, delivering a substantial 17.3 Cv flow capacity for natural gas and propane applications. With integrated 1/8" NPT upstream and downstream test ports, it allows for seamless pressure and seat leakage testing, ensuring your HVACR system maintains peak efficiency and safety. The normally closed configuration provides immediate gas flow termination when de-energized, making it an essential component for reliable low-pressure gas control.
Key Benefits
- Enhanced Safety: The normally closed design ensures the gas flow is automatically cut off whenever power is lost.
- Industrial Durability: Constructed with a die-cast aluminum body and stainless steel internal components for corrosion resistance.
- High Capacity: Supports substantial gas flow rates with a 1,372,000 BTU rating, ideal for large-scale equipment.
- Easy Maintenance: Features dual 1/8" NPT test ports for simplified routine inspections and pressure testing.
- Swift Operation: Fast-acting solenoid mechanism achieves opening and closing times in under one second.
Common Questions
- What type of gases can the ASCO K3A782V handle? It is specifically designed for natural gas, LP gas (propane), and other non-corrosive air/gas mixtures.
- Can this valve be mounted in any orientation? For optimal performance, it should be mounted with the solenoid vertical and upright, or in a horizontal position as specified by manufacturer guidelines.
- Is this a direct replacement for older ASCO models? Yes, the K3A782V commonly replaces legacy models like the K3A782S, K3A782T, and K3A782U.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
ASCO K3A782V Valve
The ASCO K3A782V Valve is a robust 1 1/2" 120V normally closed gas solenoid valve engineered for critical safety shut-off in commercial and industrial combustion systems. Designed as a high-performance 2-way safety shut-off valve, it manages fuel isolation for burners, boilers, and furnaces with a 1.5 PSI maximum operating pressure. This direct acting gas valve features a durable die-cast aluminum body and high-flow 1 3/8" orifice, delivering a substantial 17.3 Cv flow capacity for natural gas and propane applications. With integrated 1/8" NPT upstream and downstream test ports, it allows for seamless pressure and seat leakage testing, ensuring your HVACR system maintains peak efficiency and safety. The normally closed configuration provides immediate gas flow termination when de-energized, making it an essential component for reliable low-pressure gas control.
Key Benefits
- Enhanced Safety: The normally closed design ensures the gas flow is automatically cut off whenever power is lost.
- Industrial Durability: Constructed with a die-cast aluminum body and stainless steel internal components for corrosion resistance.
- High Capacity: Supports substantial gas flow rates with a 1,372,000 BTU rating, ideal for large-scale equipment.
- Easy Maintenance: Features dual 1/8" NPT test ports for simplified routine inspections and pressure testing.
- Swift Operation: Fast-acting solenoid mechanism achieves opening and closing times in under one second.
Common Questions
- What type of gases can the ASCO K3A782V handle? It is specifically designed for natural gas, LP gas (propane), and other non-corrosive air/gas mixtures.
- Can this valve be mounted in any orientation? For optimal performance, it should be mounted with the solenoid vertical and upright, or in a horizontal position as specified by manufacturer guidelines.
- Is this a direct replacement for older ASCO models? Yes, the K3A782V commonly replaces legacy models like the K3A782S, K3A782T, and K3A782U.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
