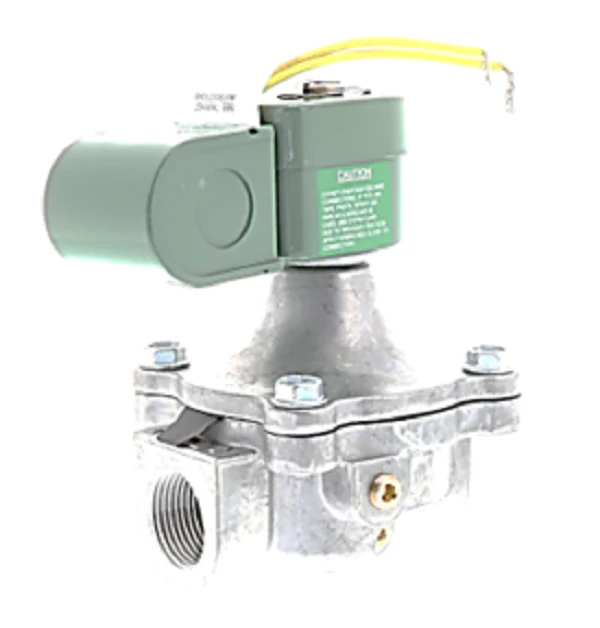

ASCO K3A662V Valve
The ASCO K3A662V Valve is a robust, 2-way normally closed gas solenoid valve engineered for precision control in commercial and industrial combustion systems. This 1-inch NPT gas valve is a pilot-operated solution designed to handle high-flow requirements with a 1-5/8" orifice and a 18.4 Cv flow factor. Operating on a 120V/60Hz electrical supply, the ASCO K3A662V ensures positive shutoff for fuel gas lines, supporting a maximum operating pressure of 5 psi. Its die-cast aluminum body and stainless steel internal components offer superior durability for burners, boilers, and furnaces. This industrial gas shutoff valve features 1/8" NPT upstream and downstream test ports, allowing for easy pressure verification and routine maintenance. With its rapid response time of less than one second, it provides reliable safety and performance for critical HVACR and process heating applications.
Key Benefits- High Flow Capacity: Features a 1-5/8" orifice and 18.4 Cv rating, supporting approximately 990,000 BTU/hr for large-scale equipment.
- Precision Safety: The normally closed (N/C) configuration ensures the valve remains securely shut until energized, preventing accidental gas flow.
- Durable Construction: Built with a rugged die-cast aluminum body and 305/430F stainless steel internal parts for long-term service life.
- Easy Maintenance: Equipped with dual 1/8" NPT pressure taps for convenient upstream and downstream testing and verification.
- Broad Compatibility: Rated for a 5# max pressure, making it ideal for both pilot and main gas line control.
Is the ASCO K3A662V a direct replacement for older models?
Yes, the ASCO K3A662V is commonly used as a direct replacement for the discontinued K3A662U model, offering identical fit and upgraded performance standards.
What type of gas systems is this valve compatible with?
This 120V gas solenoid valve is designed for fuel gas service, including natural gas, propane, and butane, commonly found in industrial burner systems.
Can this valve be mounted in any orientation?
While the ASCO K3A662V Valve is versatile, it is primarily recommended for horizontal mounting with the solenoid upright to ensure optimal pilot operation and longevity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
