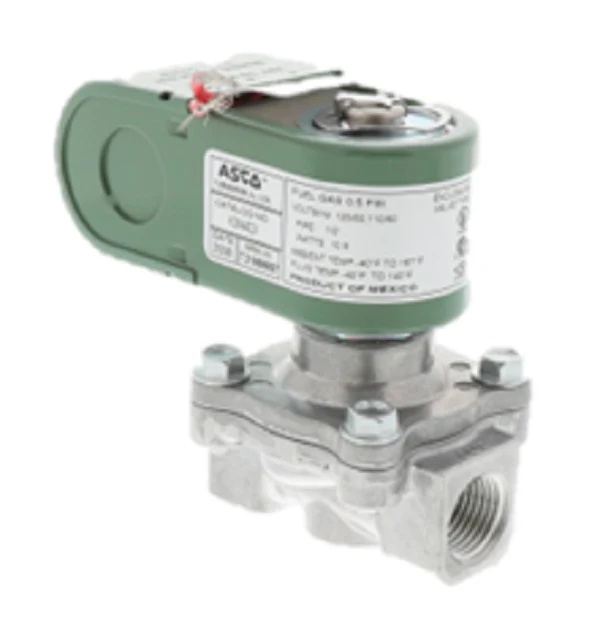

ASCO K3A442V Valve
The ASCO K3A442V Valve is a high-performance 2-way normally closed gas solenoid valve engineered for precision fuel shutoff in commercial and industrial settings. Designed for positive shutoff on pilot or main gas lines, this 1/2" NPT gas valve features a robust die-cast aluminum body and NBR seals, ensuring reliable operation for low-pressure gas applications up to 0.5 PSI. Operating on a 120V/60Hz electrical system, the unit provides rapid response times, typically opening and closing in less than one second. With a high flow capacity of 5.4 Cv (approximately 350,000 BTU/hr), this commercial gas burner valve is ideal for natural gas systems. The inclusion of 1/8" NPT upstream and downstream pipe taps facilitates routine pressure testing without system disassembly. Built to withstand demanding environments, it maintains performance in ambient temperatures ranging from -40°F to 175°F, making it a versatile choice for professional HVACR installations.
Key Benefits- Efficient Gas Control: Optimized for natural gas media with a high flow factor of 5.4 Cv for maximum heating efficiency.
- Industrial-Grade Durability: Features a die-cast aluminum body and stainless steel internal components for long-term resilience.
- Integrated Testing Ports: Dual 1/8" NPT pipe taps allow for easy diagnostic checks and system monitoring.
- Rapid Response: Direct-acting solenoid design ensures nearly instantaneous shutoff for enhanced safety.
- Wide Temperature Tolerance: Rugged construction allows for indoor or outdoor installation in diverse climates.
What is the maximum pressure rating for this valve?
The ASCO K3A442V is specifically designed for low-pressure gas solenoid applications with a maximum operating pressure differential of 0.5 PSI (1/2 PSI).
Can this valve be used for propane (LP) gas?
While primarily rated for natural gas, many ASCO K3A series valves are compatible with various fuel gases; however, you should verify the specific seal compatibility for your fuel type with a technician.
Is the coil included with the ASCO K3A442V?
Yes, this model typically comes equipped with a standard 120V/60Hz AC solenoid coil and a Type 1 general-purpose junction box enclosure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
