ASCO K3A434V Valve

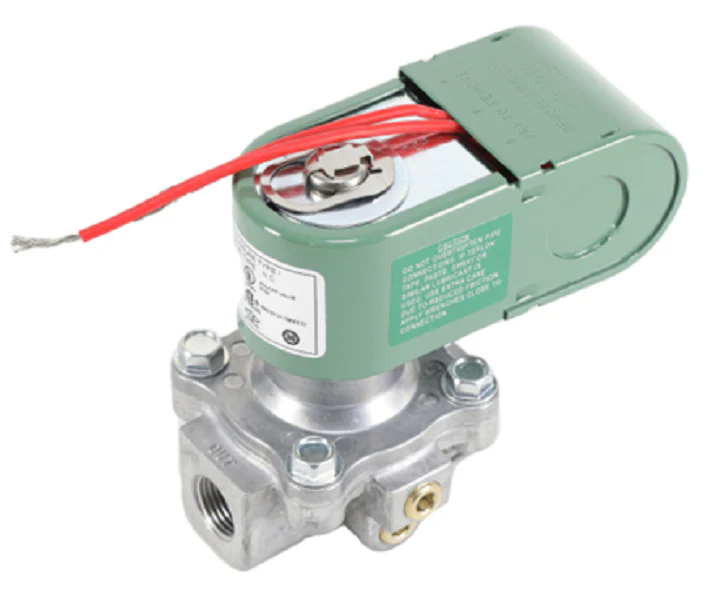

The ASCO K3A434V Gas Valve is a high-performance 2-way normally closed solenoid valve engineered for the precise control of fuel gas in commercial and industrial burners. This 3/8" NPT gas shutoff valve features a rugged die-cast aluminum body and is designed for low-pressure applications, supporting a maximum operating pressure differential of 1/2 PSI (0.5 PSIG). Operating on a 240V AC 60Hz electrical configuration, the K3A434V ensures rapid response with internal opening and closing times of less than one second. Its direct-acting mechanism provides positive shutoff for pilot or main gas lines, while the integrated 1/8" NPT upstream and downstream pipe taps simplify routine leakage testing. Built to withstand demanding environments, this ASCO RedHat valve is UL listed, FM approved, and CSA certified, making it a reliable choice for HVAC fuel gas service and industrial combustion systems.
Key Benefits- Rapid Response: Features industry-leading opening and closing times of less than one second for enhanced safety.
- Durable Construction: Die-cast aluminum body with NBR seals ensures long-term reliability in gas distribution systems.
- Simplified Maintenance: Includes 1/8-inch NPT pipe taps with plugs for easy pressure and seat leakage testing.
- Versatile Compatibility: Designed for an ambient temperature range of -40°F up to 175°F, suitable for diverse indoor operating environments.
- Safety Certified: Meets rigorous industry standards including UL 429 and CSA 6.5 for electrically operated safety valves.
What media is compatible with the ASCO K3A434V?
This valve is specifically designed for fuel gas, including natural gas and propane (LP) applications within commercial burners.
Can this valve be mounted in any orientation?
While many ASCO solenoid valves offer flexible mounting, it is recommended to install this unit with the solenoid vertical and upright to prevent debris accumulation in the core tube.
Is the coil replaceable on this model?
Yes, the 240V AC coil can be replaced; however, the valve body itself is generally considered non-repairable and should be replaced if internal performance issues occur.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
