ASCO JB8214280CSA Valve

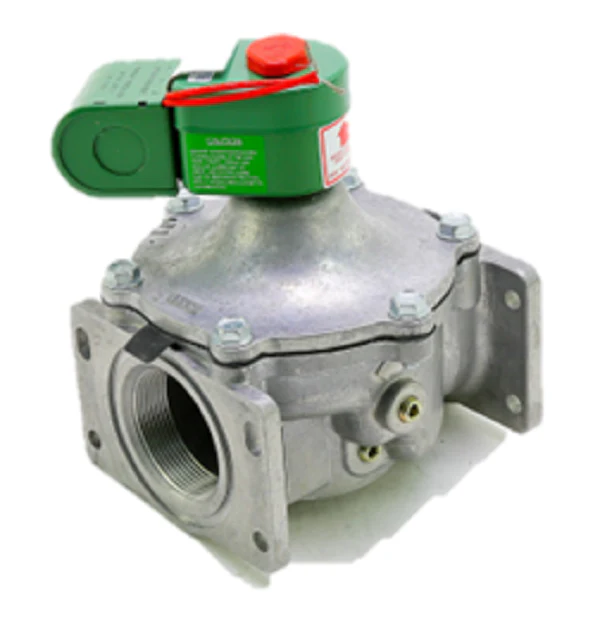

The ASCO JB8214280CSA Valve is a high-performance 2-way normally closed solenoid valve engineered specifically for critical fuel gas shutoff applications. This 2-inch NPT safety valve features a rugged aluminum body and resilient NBR seals, making it ideal for managing natural gas, air, and inert gases in industrial burners. Operating on 120Vac, the ASCO 8214 Series utilizes a unique double-disc design with overtravel to provide redundant, leak-tight shutoff. With a high flow capacity of 55 Cv and a rating of 2,940,500 BTU/hr, it excels in low-pressure environments ranging from 0-5 PSI. The integrated NEMA 1 junction box enclosure simplifies electrical installation, ensuring reliable performance in commercial heating and gas train systems. This industrial gas safety valve is UL listed and CSA certified, meeting rigorous standards for combustion fuel gas control in boilers, furnaces, and kilns.
Key Benefits
- Redundant Sealing: Features a double-disc design for superior leak protection and safety.
- High Flow Efficiency: Optimized for high-capacity systems with a 55 Cv rating and nearly 3 million BTU/hr throughput.
- Low Pressure Versatility: Specifically designed for 0 to 5 PSI industrial gas train applications.
- Durable Construction: Lightweight yet robust aluminum housing with chemical-resistant NBR elastomers.
- Ease of Integration: Includes a built-in junction box for streamlined wiring in NEMA 1 environments.
Common Questions
What is the primary application for the ASCO JB8214280CSA?
This valve is primarily used as a safety shutoff valve for fuel gas in commercial and industrial burners, including those found in large-scale boilers and furnaces.
Can this valve be used for water or oil?
While the 8214 series is robust, the JB8214280CSA model is specifically optimized and certified for fuel gas service. Always verify media compatibility with technical documentation before use.
What does 'normally closed' mean for this solenoid?
It means the valve remains in the shut position when it is de-energized. It only opens when 120V AC power is applied to the solenoid coil.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
