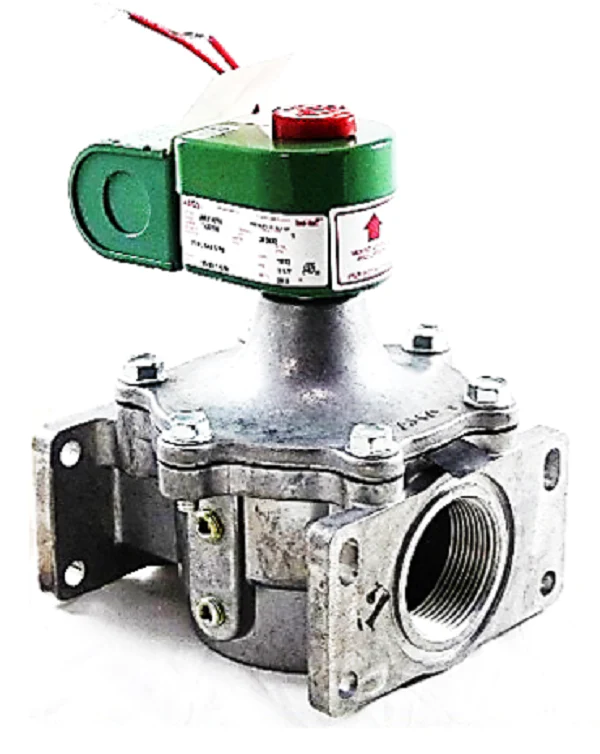

ASCO JB8214270CSA Valve
The ASCO JB8214270CSA Valve is a high-performance 2-way normally closed solenoid valve specifically engineered for demanding fuel gas shutoff applications. As part of the renowned ASCO Series 8214(200), this 1 1/2" NPT valve features a rugged aluminum body and resilient NBR seals, ensuring a leak-tight seal for commercial and industrial gas burners. Designed to handle a substantial gas capacity of 1,887,200 BTU/hr, it operates reliably within a 0-5 PSI pressure range. The 120Vac coil is protected by a NEMA 1 enclosure equipped with a convenient junction box, simplifying electrical installations. This safety shutoff valve incorporates a unique double-disc design with overtravel, providing redundant sealing that meets rigorous safety standards. Whether you are managing natural gas or propane systems, this ASCO 8214 Series valve delivers the high-flow 35 Cv performance required for maximum combustion efficiency and system protection.
Key Benefits- Redundant Safety: Features a unique double-disc design with overtravel to ensure a positive, leak-tight seal during shutoff.
- High Flow Capacity: Optimized internal geometry provides a 35 Cv flow coefficient, supporting up to 1,887,200 BTU/hr for major heating equipment.
- Industrial Durability: Constructed with a lightweight yet robust aluminum housing and NBR (Buna-N) elastomers for long-term compatibility with fuel gases.
- Simplified Wiring: The integrated junction box within the NEMA 1 enclosure allows for faster field wiring and maintenance.
- What is the maximum operating pressure for this fuel gas valve? The ASCO JB8214270CSA is designed for low-pressure systems, with a maximum operating pressure differential of 5 PSI.
- Can this valve be mounted in any orientation? For optimal performance and to meet safety certifications, ASCO recommends mounting this valve in a vertical and upright position.
- Is this solenoid valve suitable for outdoor use? The standard JB8214270CSA features a NEMA 1 enclosure, which is intended for indoor use. For outdoor or watertight requirements, please contact our team for appropriate enclosure options.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
ASCO JB8214270CSA Valve
The ASCO JB8214270CSA Valve is a high-performance 2-way normally closed solenoid valve specifically engineered for demanding fuel gas shutoff applications. As part of the renowned ASCO Series 8214(200), this 1 1/2" NPT valve features a rugged aluminum body and resilient NBR seals, ensuring a leak-tight seal for commercial and industrial gas burners. Designed to handle a substantial gas capacity of 1,887,200 BTU/hr, it operates reliably within a 0-5 PSI pressure range. The 120Vac coil is protected by a NEMA 1 enclosure equipped with a convenient junction box, simplifying electrical installations. This safety shutoff valve incorporates a unique double-disc design with overtravel, providing redundant sealing that meets rigorous safety standards. Whether you are managing natural gas or propane systems, this ASCO 8214 Series valve delivers the high-flow 35 Cv performance required for maximum combustion efficiency and system protection.
Key Benefits- Redundant Safety: Features a unique double-disc design with overtravel to ensure a positive, leak-tight seal during shutoff.
- High Flow Capacity: Optimized internal geometry provides a 35 Cv flow coefficient, supporting up to 1,887,200 BTU/hr for major heating equipment.
- Industrial Durability: Constructed with a lightweight yet robust aluminum housing and NBR (Buna-N) elastomers for long-term compatibility with fuel gases.
- Simplified Wiring: The integrated junction box within the NEMA 1 enclosure allows for faster field wiring and maintenance.
- What is the maximum operating pressure for this fuel gas valve? The ASCO JB8214270CSA is designed for low-pressure systems, with a maximum operating pressure differential of 5 PSI.
- Can this valve be mounted in any orientation? For optimal performance and to meet safety certifications, ASCO recommends mounting this valve in a vertical and upright position.
- Is this solenoid valve suitable for outdoor use? The standard JB8214270CSA features a NEMA 1 enclosure, which is intended for indoor use. For outdoor or watertight requirements, please contact our team for appropriate enclosure options.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
