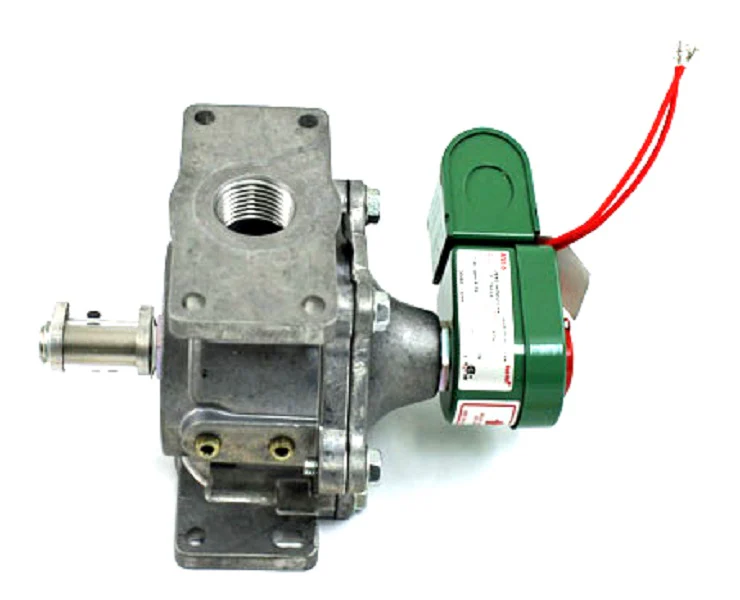

ASCO JB8214250VICSA Solenoid Valve
The ASCO JB8214250VICSA Solenoid Valve is a premier 1-inch 2-way normally closed fuel gas shutoff valve, specifically engineered for high-performance combustion systems. Featuring a rugged aluminum body and NBR seals, this 120Vac industrial gas safety valve provides a substantial flow capacity of 21 Cv, supporting up to 1,132,300 BTU/hr. Its unique internal pilot-operated design and double-disc overtravel system ensure redundant, leak-tight shutoff for commercial burners and boilers. The integrated visual indicator and junction box (NEMA 1 enclosure) allow for immediate status verification and simplified electrical installation. Designed to manage pressures from 0 to 5 PSI, this ASCO RedHat gas valve is a critical component for safe fuel gas management in HVACR and industrial heating applications. By utilizing 1/8 inch NPT downstream pipe taps, technicians can perform routine testing effortlessly, ensuring the automatic safety shutoff mechanisms remain in peak operating condition within demanding factory or mechanical room environments.
Key Benefits- Redundant Sealing: Features a double disc design with overtravel to provide a secure, leak-tight seal in the closed position.
- High Capacity Flow: Delivers 21 Cv and over 1.1 million BTU/hr, making it ideal for large-scale industrial gas burners.
- Enhanced Monitoring: Includes a 1-amp proof-of-closure switch and a visual ball indicator to confirm valve position at a glance.
- Durable Construction: Built with a lightweight yet robust aluminum body and NBR seals for reliable performance in gas service.
- Easy Installation: Equipped with a NEMA 1 junction box and flexible 1" NPT or flange connection options.
What is the maximum pressure for the ASCO JB8214250VICSA?
This valve is designed for low-pressure fuel gas systems with an operating range of 0 to 5 PSI.
What does the 'VI' suffix indicate on this ASCO model?
The 'VI' suffix signifies the inclusion of a visual indicator, allowing operators to see the open or shut status of the valve through a transparent holder.
Can this valve be used for outdoor applications?
While the aluminum body is durable, the standard NEMA 1 enclosure is primarily intended for indoor use. For outdoor or watertight requirements, please consult our team for alternative enclosures.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
