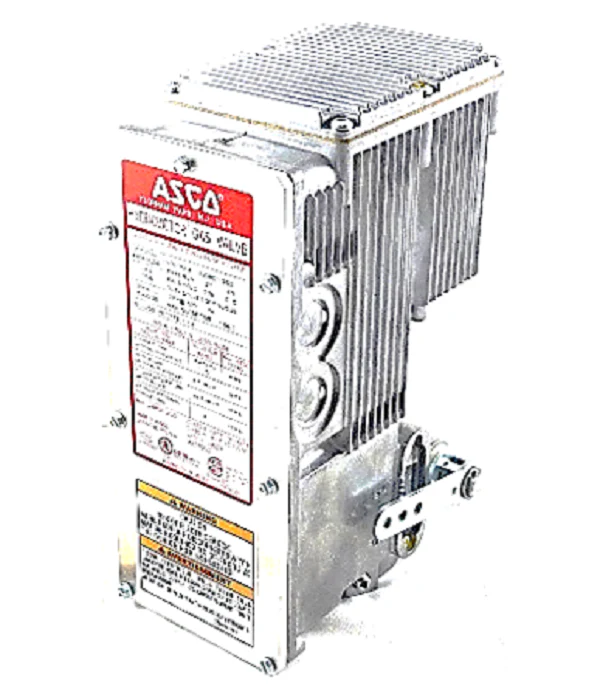

ASCO AH2E112S4 Actuator
The ASCO AH2E112S4 Actuator is a high-performance electrohydraulic linear actuator designed for critical safety shut-off applications in commercial and industrial combustion systems. This 120Vac on-off hydramotor features a fast opening mechanism, achieving full stroke in 14 seconds or less, while providing a rapid spring-return closing time of under one second. Built for durability, the unit is housed in a watertight Type 4 enclosure, making it suitable for both indoor wash-down areas and harsh outdoor environments with ambient temperatures ranging from -40°F to 150°F. The included proof of closure switch provides an essential electrical interlock for enhanced system safety, while the integrated damper shaft and arm offer versatile control for air dampers or fuel valves. This robust push-type actuator is most commonly paired with V710 gas valves to ensure reliable fuel line management in boilers, furnaces, and ovens.
This item is not eligible for free shipping.
- Enhanced Safety Compliance: Features a factory-set proof of closure switch (P.O.C.) to verify the valve is fully seated before the system proceeds.
- Rapid System Shutdown: The spring-return mechanism ensures a fail-safe shut-off in less than one second upon power interruption.
- All-Weather Reliability: A NEMA 4 / Type 4 enclosure protects internal components from water ingress, dust, and corrosion.
- Versatile Installation: The unit can be mounted in any position and includes a damper arm for simultaneous fuel and air control.
- High-Force Performance: Engineered as a self-contained heavy-duty hydramotor for demanding industrial burner applications.
Common Questions
What is the maximum opening time for the AH2E112S4?
This model is a fast opening actuator with a maximum opening time of 14 seconds at standard temperatures. Note that opening times may increase in extremely cold ambient conditions below -30°F.
Does this actuator include a damper arm?
Yes, the ASCO AH2E112S4 comes standard with an integrated damper shaft and arm, allowing it to drive secondary linkages for combustion air control.
Is this unit compatible with any gas valve?
While versatile, it is specifically designed to mount directly onto ASCO V710 Series gas bodies using a simple three-set-screw installation method.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
