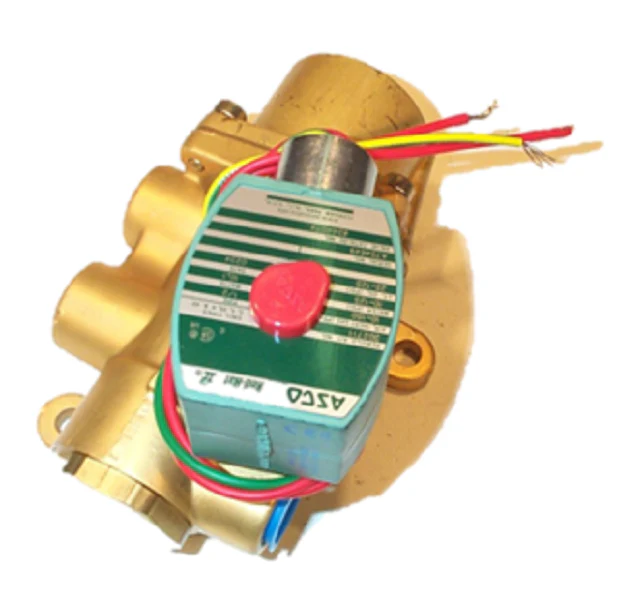

ASCO 8344G74 Valve
The ASCO 8344G74 Valve is a pilot-operated, heavy-duty 4-way solenoid valve engineered for demanding pneumatic and hydraulic applications. Featuring a robust brass body and high-flow poppet-style internals, this unit provides reliable control for double-acting cylinders and actuators. It interfaces via 1/2" NPT connections and operates on a standard 120Vac coil, housed within a NEMA 4X enclosure for superior protection against corrosion and environmental ingress. The piston-operated design ensures high flow rates with a 1.4 Cv factor, supporting a wide pressure range: 10–150 PSI for air, 10–125 PSI for water, and 25–125 PSI for light oil (@300 SSU). Built with NBR (Buna-N) seals and discs, this ASCO 8344 Series valve maintains tight shut-off and consistent performance even in high-cycle industrial environments. Contractors can rely on its versatile mounting positions and "packless" construction for simplified integration into existing HVACR and process control systems.
This item is not eligible for free shipping.
Key Benefits:- High-Flow Poppet Design: Delivers a 1.4 Cv flow factor, ideal for rapid actuation of large-bore cylinders and industrial pistons.
- Environmental Resilience: The NEMA 4X enclosure provides watertight and corrosion-resistant protection for electrical components in harsh conditions.
- Versatile Media Compatibility: Rated for air, clean water, and light oils, allowing for standardization across multiple fluid power systems.
- Simplified Maintenance: Pilot-operated piston construction allows for field servicing without removing the valve body from the piping.
- Flexible Installation: Engineered to function in any mounting orientation, though upright vertical mounting is recommended for maximum service life.
What is the minimum operating pressure for this valve?
The ASCO 8344G74 requires a minimum differential pressure of 10 PSI for air/water and 25 PSI for light oil to ensure the pilot-operated piston shifts correctly.
Can this valve be used with double-acting cylinders?
Yes, as a 4-way solenoid valve, it is specifically designed to control the extension and retraction of double-acting pneumatic or hydraulic cylinders.
Is the coil replaceable if the voltage requirements change?
Yes, the 8344 series allows for coil replacement. Always verify the 120Vac/60Hz naming convention and enclosure compatibility before swapping components.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
