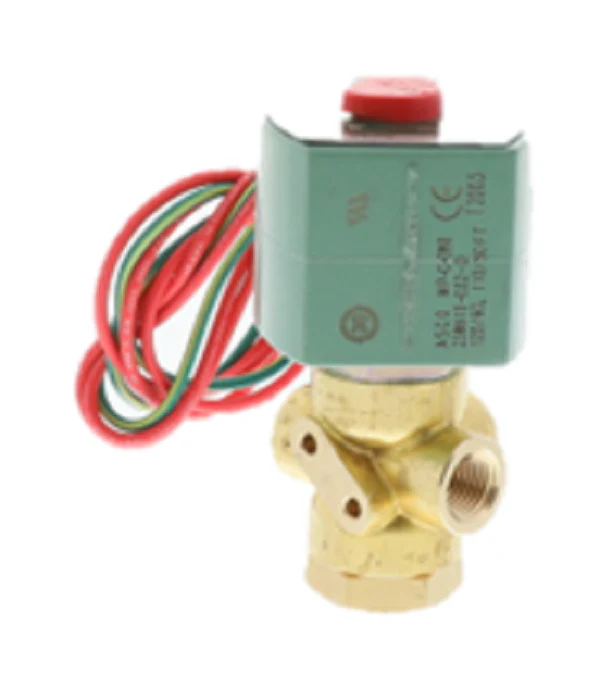

ASCO 8320G184 Valve
The ASCO 8320G184 Valve is a high-performance 3-way normally closed solenoid valve engineered for precision control in demanding HVACR and industrial applications. Featuring a rugged brass body and reliable NBR seals, this direct acting solenoid valve is designed for general service with air, inert gas, water, and light oil. With a 1/4" NPT connection and a 120Vac coil, it delivers consistent operation across a pressure range of 0-150 PSI. Its compact design and versatile mounting make it a top choice for automation systems requiring a low flow solenoid valve with a .12 Cv flow factor. Built to withstand harsh environments, the NEMA 4X enclosure provides superior protection against corrosion and moisture, ensuring long-term reliability in critical fluid control processes. Whether integrated into pneumatic systems or liquid distribution lines, the ASCO RedHat series 8320G184 offers the durability and responsiveness required for professional-grade installations.
Key Benefits- Universal Compatibility: Works efficiently with air, water, and light oil for diverse industrial utility.
- Direct Acting Mechanism: Operates reliably at 0 PSI minimum pressure, making it ideal for low-pressure systems.
- Environmental Protection: The NEMA 4X rated housing ensures the electrical components remain shielded from washdowns and outdoor elements.
- Precise Flow Control: The .12 Cv orifice provides accurate metering for sensitive technical applications.
What is the difference between a normally closed and normally open 3-way valve?
In a normally closed configuration like the ASCO 8320G184, the pressure port is closed and the cylinder port is connected to the exhaust when the coil is de-energized. Bypassing or changing flow requires electrical activation.
Can this valve be mounted in any orientation?
While ASCO valves are designed for versatility, mounting with the solenoid vertical and upright is recommended to prevent sediment from accumulating in the core tube area.
Is the 8320G184 compatible with harsh chemicals?
This model features NBR (Buna-N) seals and a brass body, which are excellent for general service. For highly corrosive chemical applications, verify compatibility with the specific medium before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
