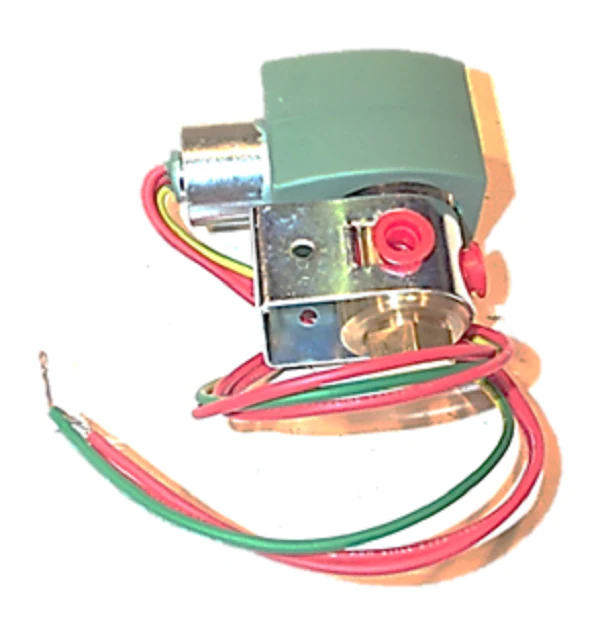

ASCO 8320G1 Valve
The ASCO 8320G1 Valve is a high-performance 3-way universal solenoid valve engineered for precision fluid control in demanding industrial environments. Featuring a direct-acting design, this ASCO RedHat series component requires no minimum operating pressure, making it an ideal choice for low-pressure systems, vacuum applications, and sensitive instrumentation. The rugged brass body and reliable NBR (Nitrile) seals ensure a long service life when handling air, inert gas, water, and light oils. With its 1/8" NPT connection and a compact 1/16" orifice, this valve provides an efficient 0.09 Cv flow factor while supporting pressures up to 100 PSI. Designed for versatile installation, the 120Vac coil is protected by a robust NEMA 4X enclosure, providing superior resistance to corrosion and moisture. Whether you are managing pneumatic actuators or complex process control circuits, the 8320G1 delivers the legendary reliability expected from ASCO solenoid valves.
Key Benefits- Universal Operation: Can be piped in normally closed, normally open, or universal configurations to suit any system layout.
- Zero Minimum Pressure: Direct-acting poppet construction allows the valve to operate from 0 PSI up to its maximum rating without a pilot.
- Environmental Protection: The NEMA 4X / IP66 rated watertight enclosure ensures performance in harsh washdown or outdoor environments.
- In-Line Mounting: All NPT connections are located directly in the valve body, simplifying piping and reducing installation footprint.
Can the ASCO 8320G1 be used for vacuum service?
Yes, because it is a direct-acting valve with no minimum pressure requirement, it is suitable for vacuum applications within its technical limits.
Which media are compatible with the NBR seals?
The Nitrile (NBR) seals are optimized for air, inert gases, water, and light oils (up to 300 SSU viscosity) at temperatures up to 180°F.
Is this valve compatible with existing ASCO RedHat II coils?
Yes, the 8320G1 utilizes the standard ASCO RedHat II molded epoxy coil system for easy field replacement or voltage changes.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
