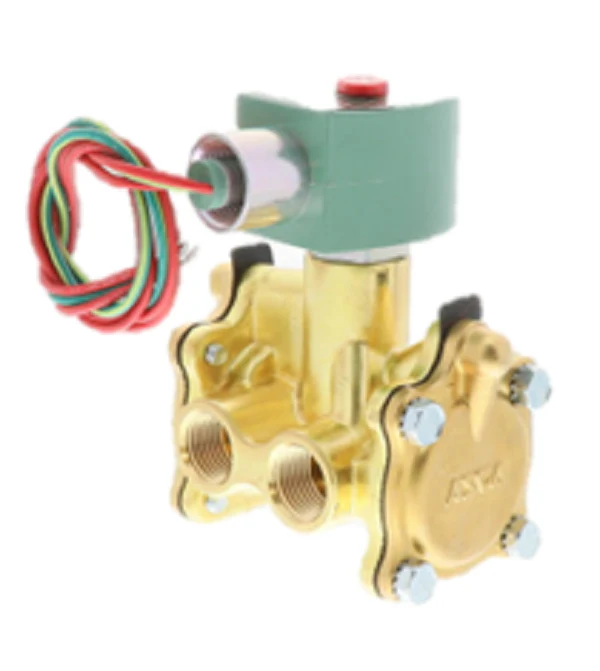

ASCO 8316G64 Valve
The ASCO 8316G64 Solenoid Valve is a high-flow, 3-way normally closed (NC) pilot-operated valve engineered for the precise control of single-acting cylinders and large actuators. Constructed with a rugged brass body and reliable NBR (Buna-N) seals, this 1/2" NPT valve is optimized for demanding industrial applications involving compressed air (10-150 PSI) and water (10-125 PSI). Its pilot-operated mechanism ensures a high 3.2 Cv flow factor, facilitating rapid response times and efficient system operation. The unit includes a NEMA 4X enclosure, providing superior protection against corrosion, dust, and water in both indoor and outdoor environments. Designed for versatility, the ASCO RedHat series supports multiple 120VAC and DC voltage configurations to integrate seamlessly into diverse electrical control systems.
Key Benefits:- High-Flow Efficiency: Features a 3.2 Cv flow capacity to ensure rapid actuation of large pneumatic cylinders and process valves.
- Industrial Durability: The corrosion-resistant brass body and NBR seals provide long-lasting service life in harsh environments.
- Weatherproof Reliability: NEMA 4X rated protection makes it suitable for washdown areas and outdoor installations.
- Flexible Media Control: Dual-rated for air and water control, simplifying inventory for multiple industrial 3-way valve applications.
- Precise Actuation: Requires a 10 PSI minimum pressure differential to maintain consistent shifting for single-acting cylinder control.
- Can this valve be used for vacuum applications? No, the ASCO 8316G64 is a pilot-operated valve requiring a minimum 10 PSI differential; it is not designed for zero-pressure or vacuum systems.
- Does this valve support normally open operation? This specific model is normally closed; however, the ASCO 8316 series offers alternative configurations for normally open requirements.
- What happens if there is low voltage to the coil? Insufficient voltage can lead to solenoid chatter or a failure to shift. Ensure a stable 120VAC power supply for optimal solenoid performance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
