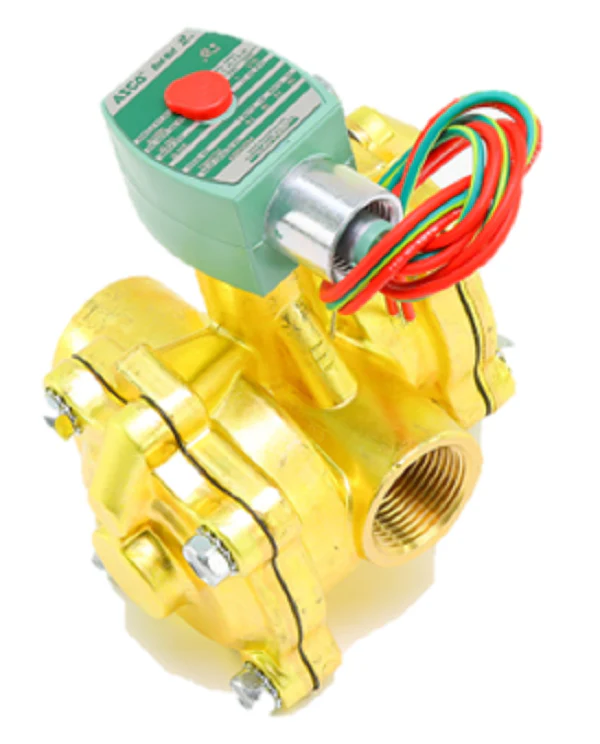

ASCO 8316G34 Valve
The ASCO 8316G34 Valve is a high-performance 3-way normally closed solenoid valve engineered for precision flow control in demanding HVACR and industrial environments. This pilot operated solenoid valve features a robust brass body and high-grade NBR seals (Buna-N), ensuring reliable containment and long-term durability when managing air, inert gas, and clean water. With a substantial 1-inch NPT connection and a flow coefficient of 12.5 Cv, it is specifically designed to pilot large actuators or provide rapid exhaust for single-acting cylinders.
Operating on a standard 120Vac power supply, the unit maintains a tight shutoff across a pressure range of 10-150 PSI for air and 10-125 PSI for water. The NEMA 4X enclosure provides superior protection against corrosion and environmental ingress, making it an ideal ASCO RedHat valve for washdown areas or outdoor installations. Whether used for pneumatic actuator control or general fluid automation, the 8316G34 delivers the 1-inch high-flow capacity required for critical system performance.
Key Benefits:
- High-Flow Efficiency: Features a massive 12.5 Cv rating to support rapid cycle rates in large-scale systems.
- Industrial Durability: The corrosion-resistant brass construction and NEMA 4X rating ensure longevity in harsh environments.
- Versatile Media Handling: Optimized for air, inert gas, and water applications with resilient NBR sealing.
- Fast Response Time: Pilot-operated diaphragm design allows for quick opening and closing of larger orifices.
Common Questions:
What is the minimum pressure required for this valve to operate?
As a pilot-operated model, the ASCO 8316G34 requires a minimum operating pressure differential of 10 PSI to successfully shift the diaphragm.
Can the ASCO 8316G34 be mounted in any orientation?
Yes, this valve is designed to be mountable in any position without affecting its performance, though upright is often preferred for easiest maintenance.
Is the NEMA 4X enclosure suitable for outdoor use?
Absolutely. The NEMA 4X rating indicates the enclosure is watertight and offers additional protection against corrosion, making it perfect for challenging environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
