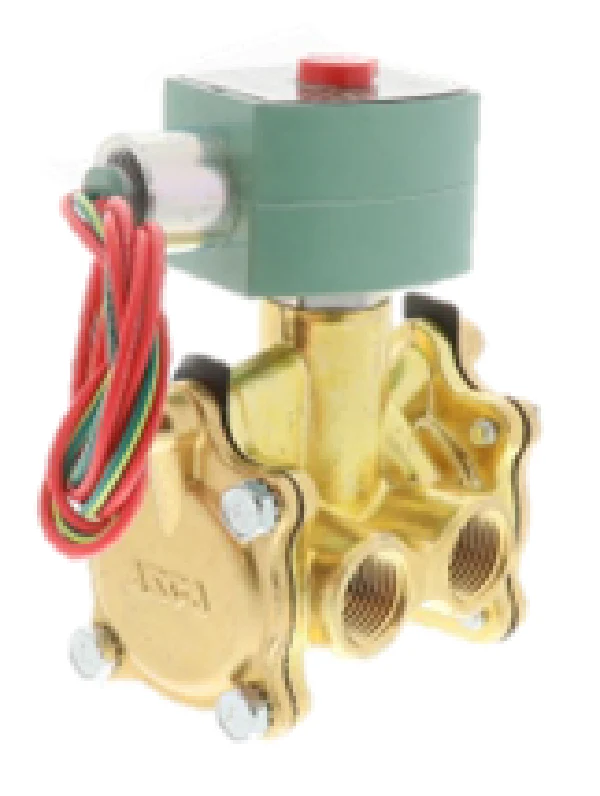

ASCO 8316G24 Solenoid Valve
The ASCO 8316G24 Solenoid Valve is a high-performance, pilot-operated 3-way normally closed solenoid valve engineered for precision control in industrial pneumatic and hydraulic systems. As a centerpiece of the ASCO 8316 Series, this 1/2" NPT valve is specifically optimized for driving single-acting cylinders and managing high-flow air or water media. Its pilot-operated diaphragm design ensures reliable shifting even in demanding cycles, provided a minimum operating pressure differential of 10 PSI is maintained. Built with a durable brass body and resilient Buna-N (NBR) seals, it provides a leak-tight solution for pressure ranges spanning 10 to 250 PSI. The 120V AC coil is protected by a NEMA 4X enclosure, making it ideal for washdown environments or locations prone to corrosion. With a high 3.2 Cv flow coefficient, this valve maximizes throughput while maintaining the rigorous standards required for automated process control and HVACR applications.
Key Benefits
- High Flow Capacity: The 3.2 Cv rating allows for rapid venting and actuation of large pneumatic equipment.
- Harsh Environment Protection: The NEMA 4X rated housing prevents damage from moisture, dust, and corrosive agents.
- Versatile Media Handling: Optimized for both air and water, supporting a wide array of industrial fluid control needs.
- Trusted Reliability: The 8316 series architecture is industry-proven for long-cycle life in manufacturing and automation.
- Simplified Integration: Standard 1/2" NPT connections and 120VAC power requirements allow for drop-in replacement in existing systems.
Common Questions
What is the minimum pressure required for the ASCO 8316G24 to operate?
This is a pilot-operated valve and requires a minimum pressure differential of 10 PSI between the inlet and outlet to function correctly. It will not operate in zero-pressure or gravity-feed systems.
Can this valve be used for double-acting cylinders?
The ASCO 8316G24 is a 3-way valve designed primarily for single-acting cylinders. For double-acting cylinders, a 4-way solenoid valve is typically required.
Is the NEMA 4X enclosure suitable for outdoor use?
Yes, the NEMA 4X rating indicates superior protection against windblown dust, rain, and hose-directed water, as well as additional protection against corrosion.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
