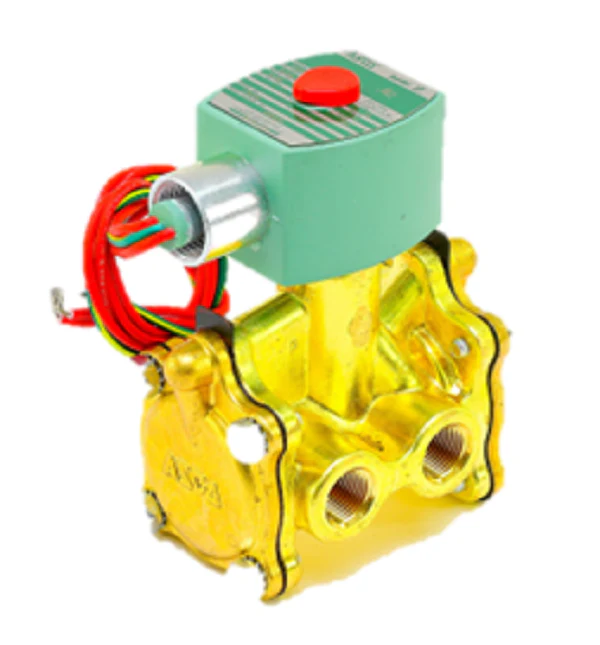

ASCO 8316G14 Valve
The ASCO 8316G14 is a high-performance 3-way normally closed solenoid valve engineered for precision control in demanding HVACR and industrial applications. This pilot operated valve features a rugged brass body and high-flow diaphragm poppet design, specifically optimized for managing air, inert gas, and water. With a 3/8" NPT connection and a substantial 2.5 Cv flow coefficient, it provides the rapid response and high-volume throughput required to pilot large actuators or manage direct process lines. Operating within a 10-250 PSI pressure range, the 8316G14 120Vac model ensures tight shutoff through its resilient NBR seals and brass discs. The integrated NEMA 4X enclosure offers superior protection against corrosion and moisture, making it ideal for watertight or washdown environments. Designed for versatility, this ASCO RedHat series valve maintains its industrial-grade reliability even in high-cycling automation systems where consistent 120V/60Hz performance is critical.
Key Benefits
- High-Flow Capacity: The 2.5 Cv rating and 5/8" orifice allow for efficient movement of large media volumes.
- Environmental Resilience: Professional-grade NEMA 4X watertight enclosure prevents internal damage from harsh external conditions.
- Versatile Media Handling: Compatible with compressed air, inert gases, and water up to 180°F.
- Reliable Pilot Operation: Internal piloting ensures quick closing and opening for large-scale control valve automation.
- Flexible Installation: The unit is mountable in any position, simplifying integration into existing pipework.
Common Questions
What is the minimum operating pressure for this valve?
The ASCO 8316G14 requires a minimum differential pressure of 10 PSI to function correctly, as it is a pilot operated diaphragm valve.
Can this valve be used for outdoor applications?
Yes, the NEMA 4X rated enclosure is designed to protect electrical components against hose-directed water and corrosion, making it suitable for outdoor use.
Is the 8316G14 compatible with lubricated air?
The NBR (Nitrile) seals are generally compatible with most standard lubricants, though for non-lubricated or dry air service, periodic inspection of the diaphragm poppet is recommended to ensure longevity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
Original: $630.11
-65%$630.11
$220.54ASCO 8316G14 Valve
