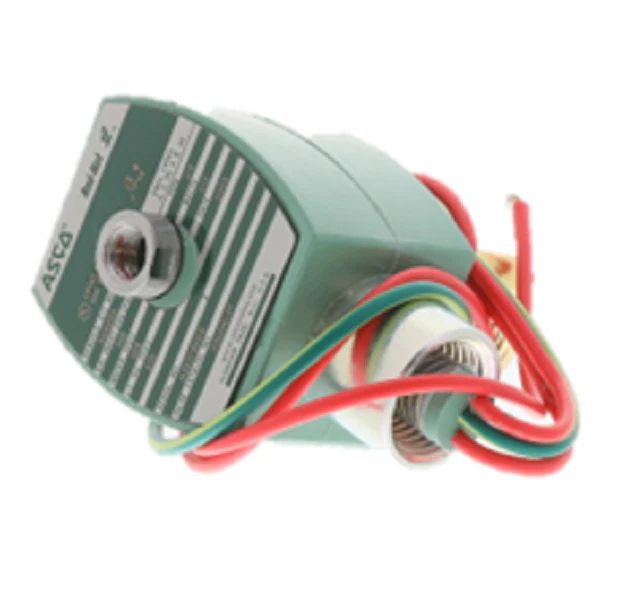

ASCO 8314H36 Valve
The ASCO 8314H36 Valve is a high-performance 3-way normally closed solenoid valve designed for demanding industrial HVACR and process control applications. Featuring a robust brass body and 1/4 inch NPT connections, this direct acting valve provides reliable fluid control without requiring a minimum operating pressure. It is engineered to handle a broad range of media, supporting 0-145 PSI for air and water and 0-100 PSI for light oil. The 120Vac coil is housed in a NEMA 4X enclosure, ensuring superior protection against corrosion and moisture in harsh environments. As a cornerstone of the ASCO RedHat series, the 8314H36 is optimized for high-cycle life and precision piloting of larger actuators. Its simplified design, consisting of only a spring and two moving parts, reduces maintenance needs while maximizing uptime for general service operations.
Key Benefits- Universal Compatibility: Versatile design handles air, inert gas, water, and light oil with ease.
- Rugged Durability: The brass body and NEMA 4X rating provide excellent resistance to environmental wear.
- High-Speed Operation: Direct-acting poppet design ensures rapid response times for critical piloting tasks.
- Zero Minimum Pressure: Operates effectively even at low pressures, making it ideal for gravity-fed or low-flow systems.
- Compact Midget Design: Space-saving footprint allows for easy integration into tight industrial manifolds.
What is the difference between a 3-way normally closed and 3-way universal valve?
A normally closed valve like the ASCO 8314H36 directs flow from the inlet to the outlet only when energized; when de-energized, the outlet port exhausts. Universal valves can be piped in any configuration.
Can this valve be used in outdoor environments?
Yes, the NEMA 4X enclosure is specifically designed to protect the solenoid internal components from rain, ice, and hose-directed water.
Does this solenoid valve require a minimum pressure to open?
No, this is a direct acting solenoid valve, meaning it does not rely on line pressure to move the plunger, allowing it to operate from 0 PSI up to its maximum rating.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
