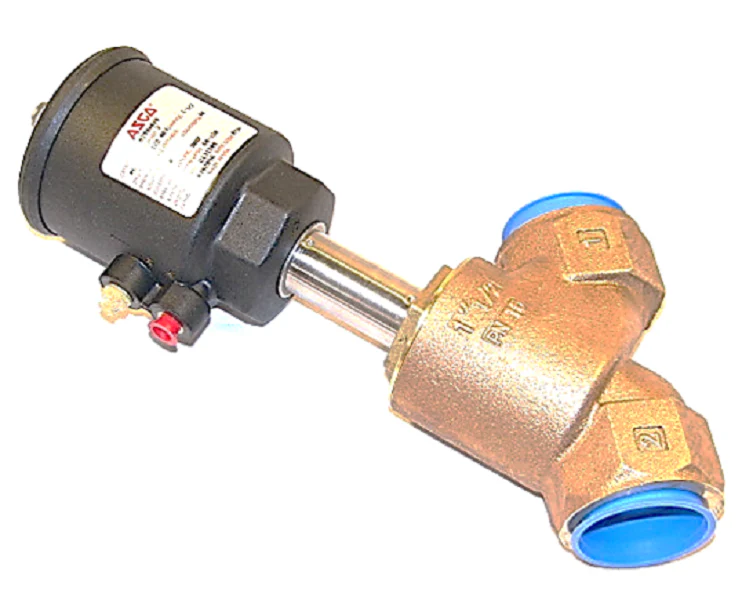

ASCO 8290A20 Valve
The ASCO 8290A20 Valve is a high-performance 2-way normally closed angle body piston valve designed for demanding industrial HVACR and fluid control applications. Featuring a robust 1 1/2" NPT connection and a 63mm entry under-disc pilot operator, this pneumatically operated solenoid valve excels in managing high flow rates with a 52 Cv flow coefficient. Built with a durable angled bronze body and a resilient Teflon (PTFE) seat, it provides exceptional chemical resistance and thermal stability when handling air, water, fluids, and steam. Engineered for pressure ranges of 60-150 PSI for pilot air and 0-60 PSI for process media, the 8290 series is a benchmark for industrial process automation. Its straight-through flow path minimizes turbulence and pressure drop, making it an ideal choice for steam piping systems and rapid-cycling laundry or food processing equipment requiring precise fluid shut-off and long-term reliability in harsh environments.
Key Benefits
- High Flow Capacity: The 52 Cv rating ensures maximum throughput with minimal pressure loss for large-scale systems.
- Durability: The bronze body construction and Teflon seating offer superior resistance to corrosion and high temperatures.
- Versatile Media Handling: Optimized for steam, hot water, and aggressive fluids, providing a reliable solution for diverse HVACR needs.
- Reliable Actuation: The 63mm pilot operator ensures consistent performance under varying pressure conditions.
Common Questions
What is the maximum fluid temperature for the ASCO 8290A20?
Thanks to the Teflon (PTFE) seal and bronze construction, this valve is typically rated for steam and fluid temperatures up to 366°F, though specific process conditions should be verified.
Can this valve be mounted in any orientation?
While the ASCO 8290 series is versatile, it is highly recommended to mount the valve with the actuator in the upright position to ensure optimal seal life and prevent sediment buildup.
What is required to operate this valve?
As a pressure-operated piston valve, it requires a pilot air source (60-150 PSI) controlled by a 3-way solenoid valve to actuate the piston and open the flow path.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
